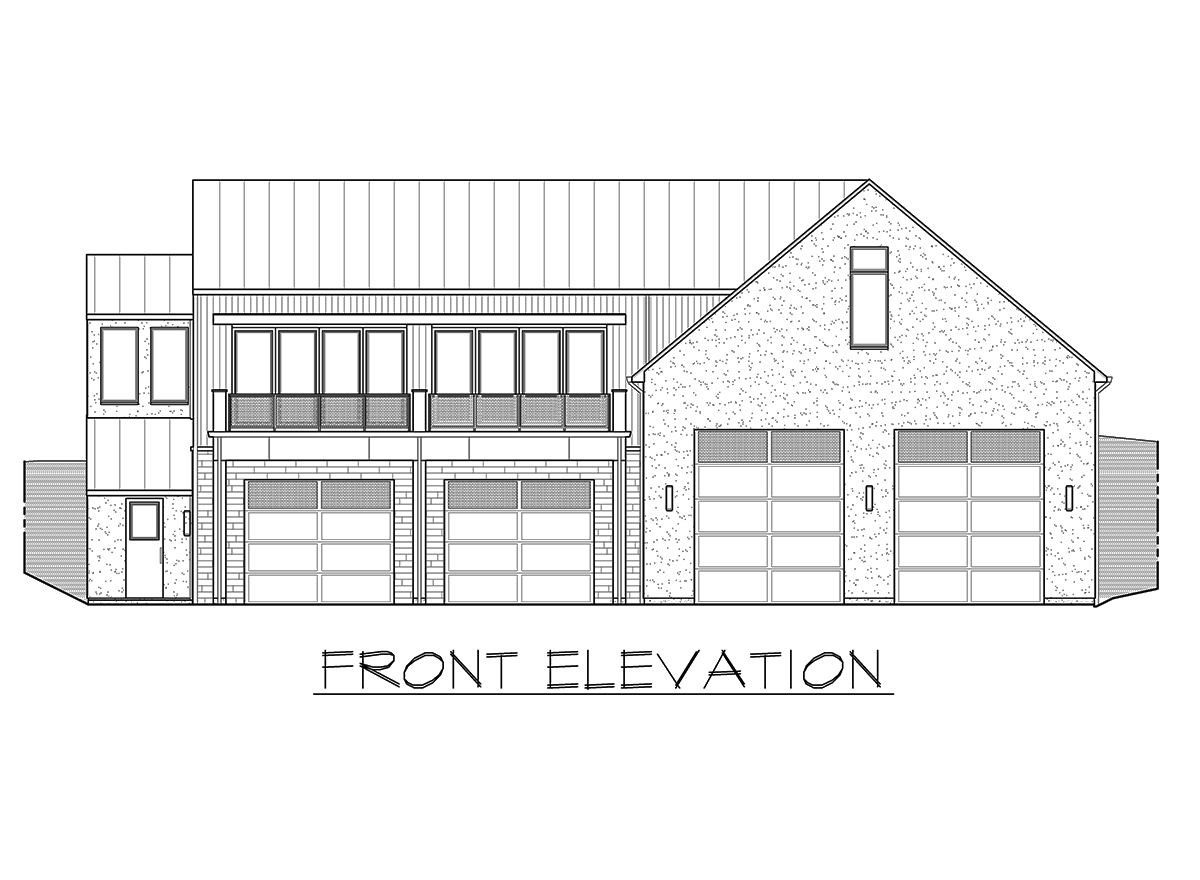

Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

SEVILLA COMPANION

A1830A4F-0
  • Total Area:1842 Sq. Ft.
  • Garage Area:3312 Sq Ft
  • Garage Size:4
  • Stories:2
  • Bedrooms:2
  • Full Baths:1
  • Half Baths:1
  • Width:80'-6"
  • Depth:52'-0"
  • Height:23'-6"
  • Foundation:Slab
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan
A1830A4F-0 Sevilla Companion Main Floor
Main Floor

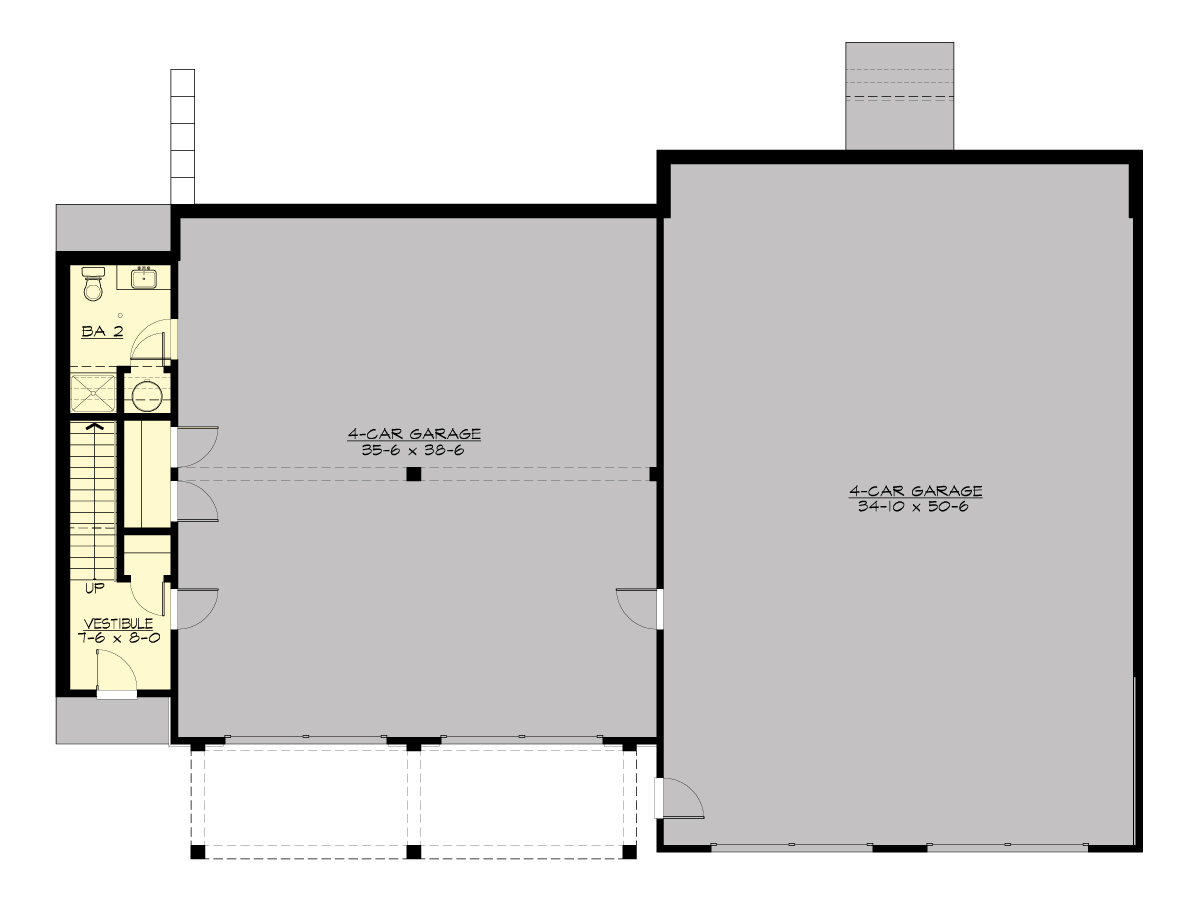

A1830A4F-0 Sevilla Companion Lower Floor
Lower Floor
PLAN DETAILS FOR THE SEVILLA COMPANION - PLAN A1830A4F-0
Area Summary
  • Total Area:1842 Sq. Ft.
  • Main Floor:1562 Sq. Ft.
  • Lower Floor:280 Sq. Ft.
  • Garage Floor:3312 Sq. Ft.
General Information
  • Stories:2
  • Width:80'-6"
  • Depth:52'-0"
  • Height:23'-6"
Architectural Style
  • European
  • Modern
  • Traditional
Number of Rooms
  • Bedrooms:2
  • Full Baths:1
  • Half Baths:1
Garage
  • Garage Size:4
  • Garage Door Location:Front
  • Garage Type: Under
Roof Pitches
  • Primary:10:12
  • Secondary:5:12
Wall Heights
  • Main:16'-0"
  • Upper:9'-0"
Foundation Type
  • Slab On Grade
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Great Room
  • Laundry Room @ Main Floor
  • European House Plans
  • Modern Home Plans
  • Traditional House Plans
  • View Lot (Front) Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
