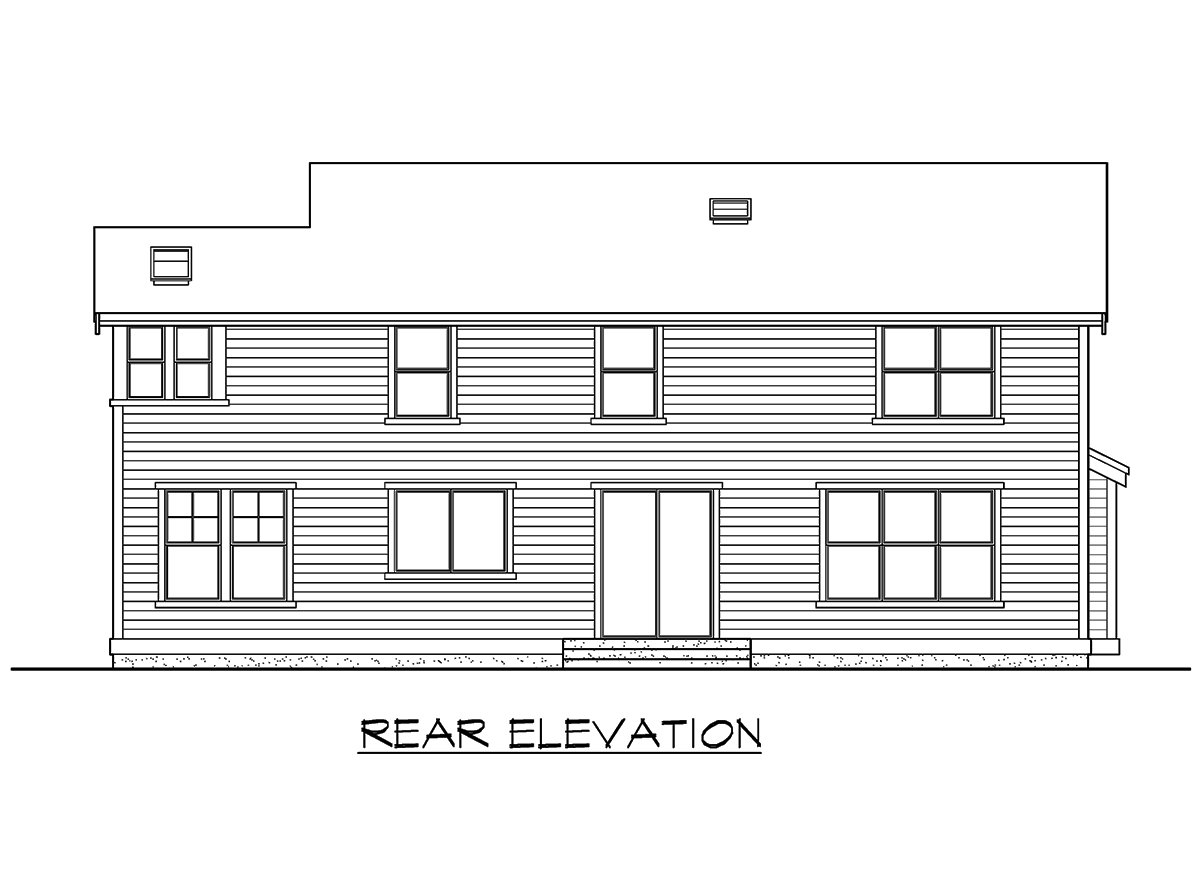

Rear Elevation

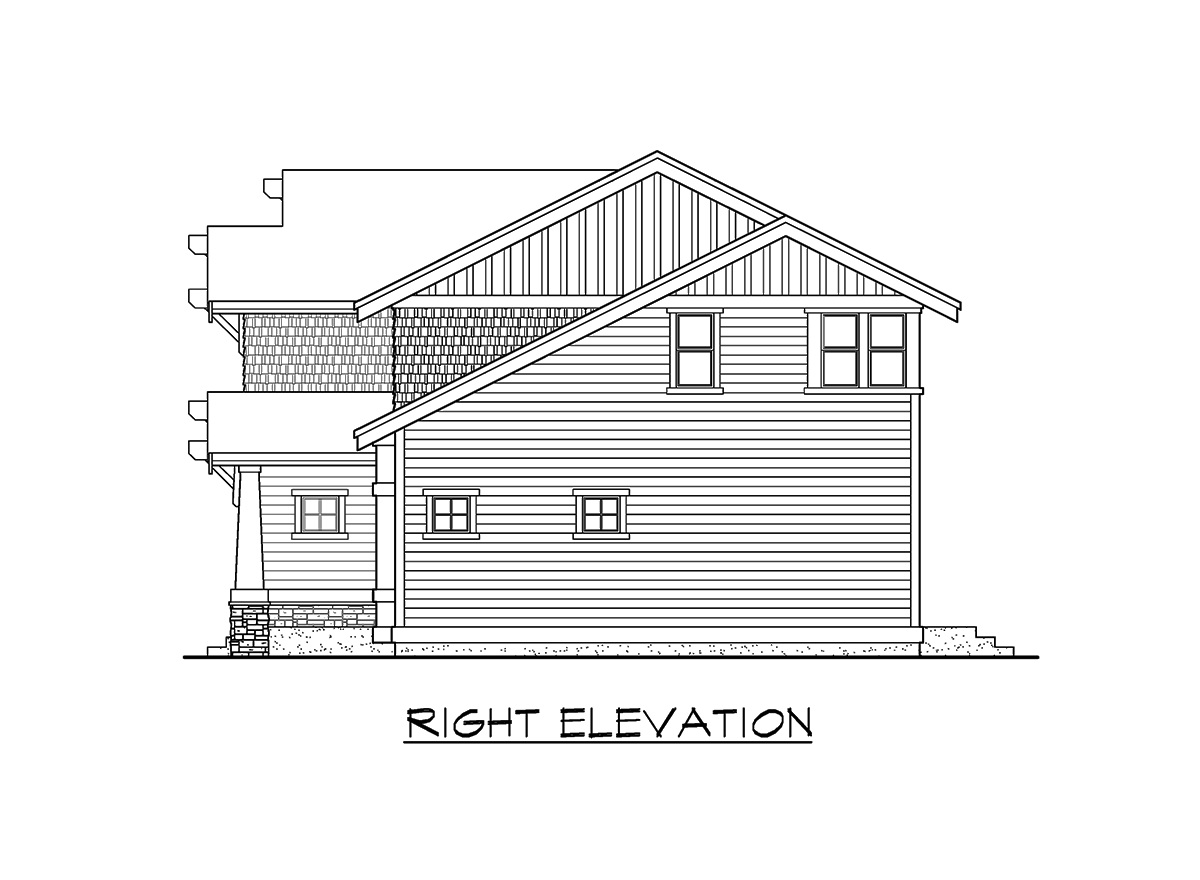

Right Elevation
Front Exterior
Front Exterior
Front Exterior
Front Rendering
Rear Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

SHINGLETON

M2565A2F-0
  • Total Area:2565 Sq. Ft.
  • Garage Area:392 Sq Ft
  • Garage Size:2
  • Stories:2
  • Bedrooms:3
  • Full Baths:2
  • Half Baths:1
  • Width:52'-0"
  • Depth:38'-0"
  • Height:25'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

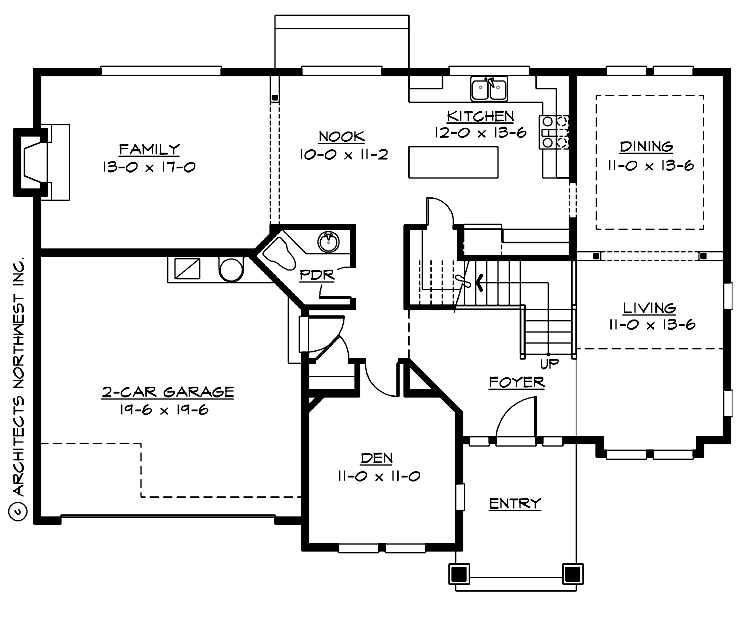

M2565A2F-0 Shingleton Main Floor
Main Floor
M2565A2F-0 Shingleton Upper Floor
Upper Floor
PLAN DETAILS FOR THE SHINGLETON - PLAN M2565A2F-0
Area Summary
  • Total Area:2565 Sq. Ft.
  • Main Floor:1281 Sq. Ft.
  • Upper Floor:1284 Sq. Ft.
  • Garage Floor:392 Sq. Ft.
General Information
  • Stories:2
  • Width:52'-0"
  • Depth:38'-0"
  • Height:25'-6"
Architectural Style
  • Craftsman
  • Northwest
  • Shingle
Number of Rooms
  • Bedrooms:3
  • Full Baths:2
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Front
Roof Pitches
  • Primary:6:12
Wall Heights
  • Main:9'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Upper Floor
  • Den/Office
  • Great Room
  • Laundry Room @ & Upper Floor
  • Master Bedroom @ Upper Floor Rear
  • Craftsman House Plans
  • Northwest Floor Plans
  • Shingle House Plans
  • Affordable Home Designs
  • Small House Plans
