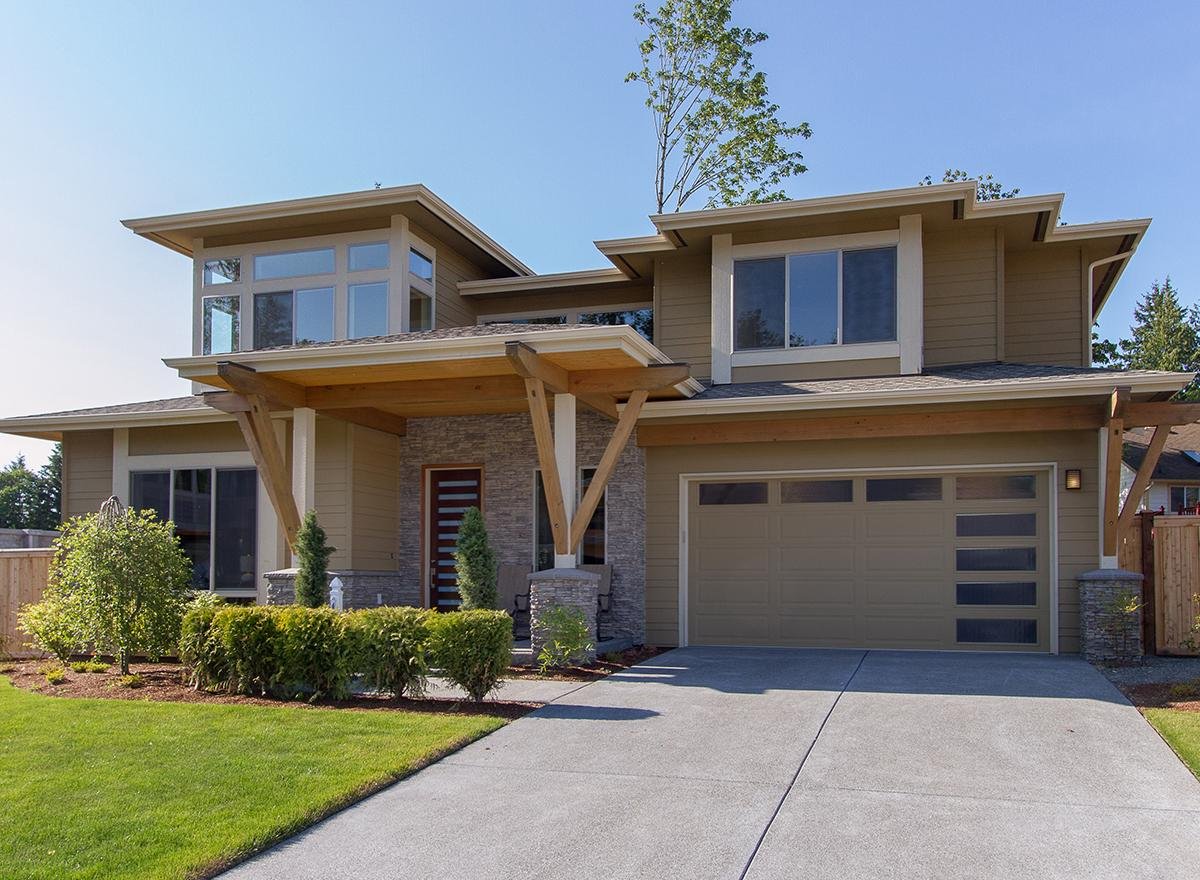

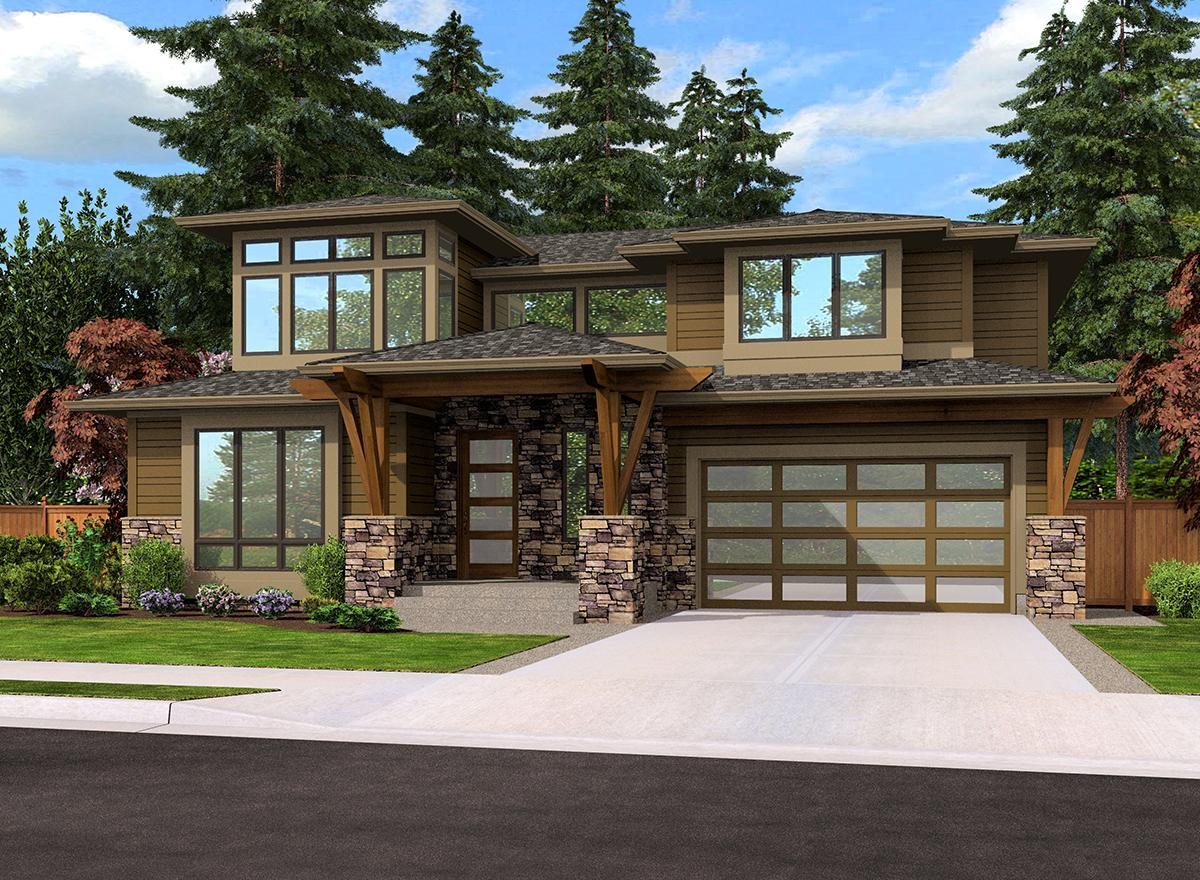

Front Photo

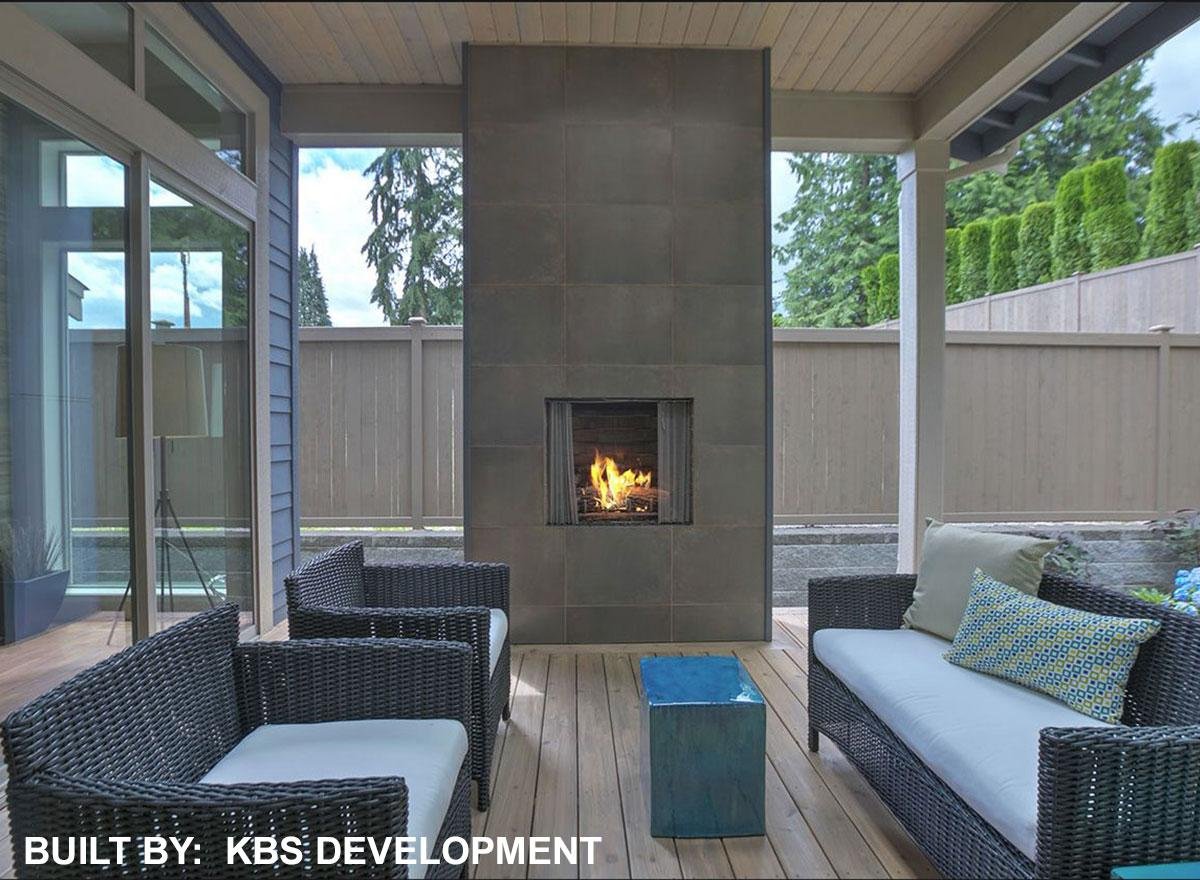

Outdoor Living

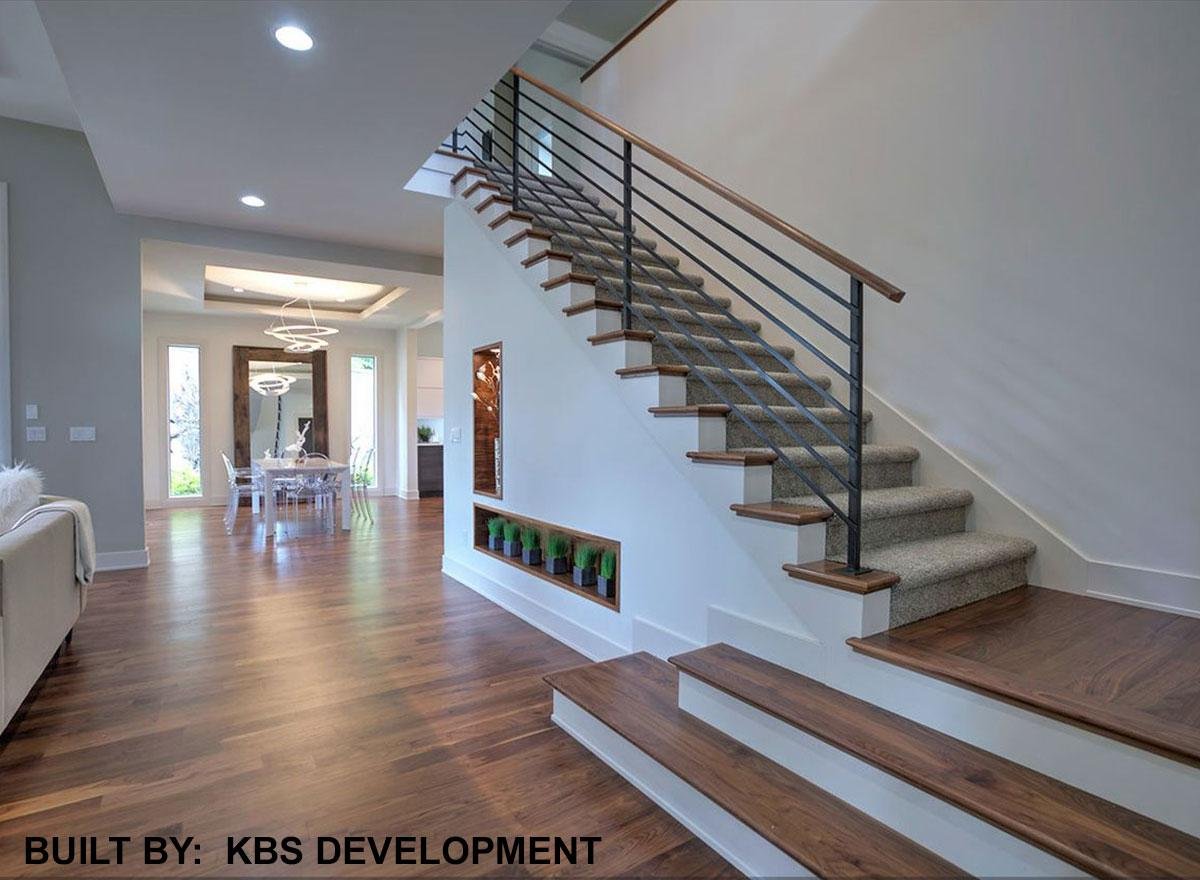

Stairs
Hall
Foyer

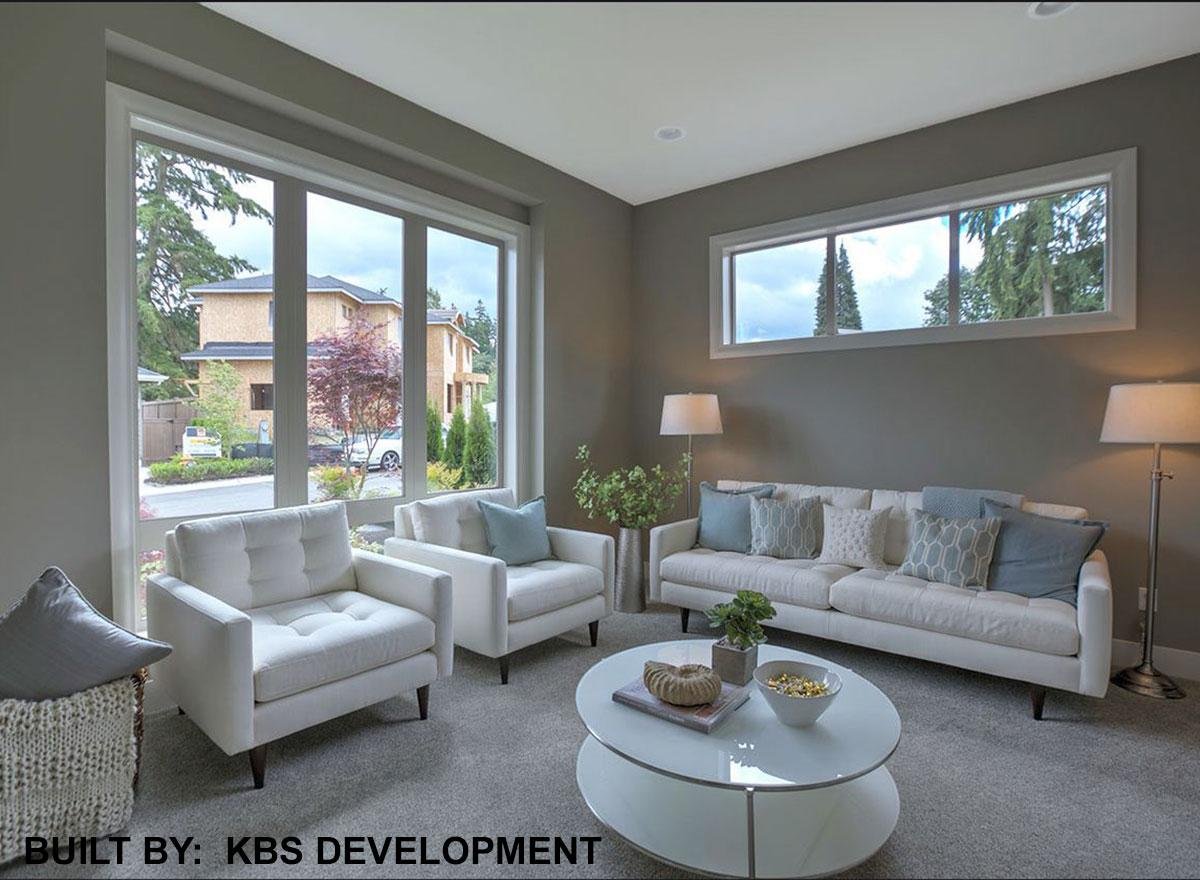

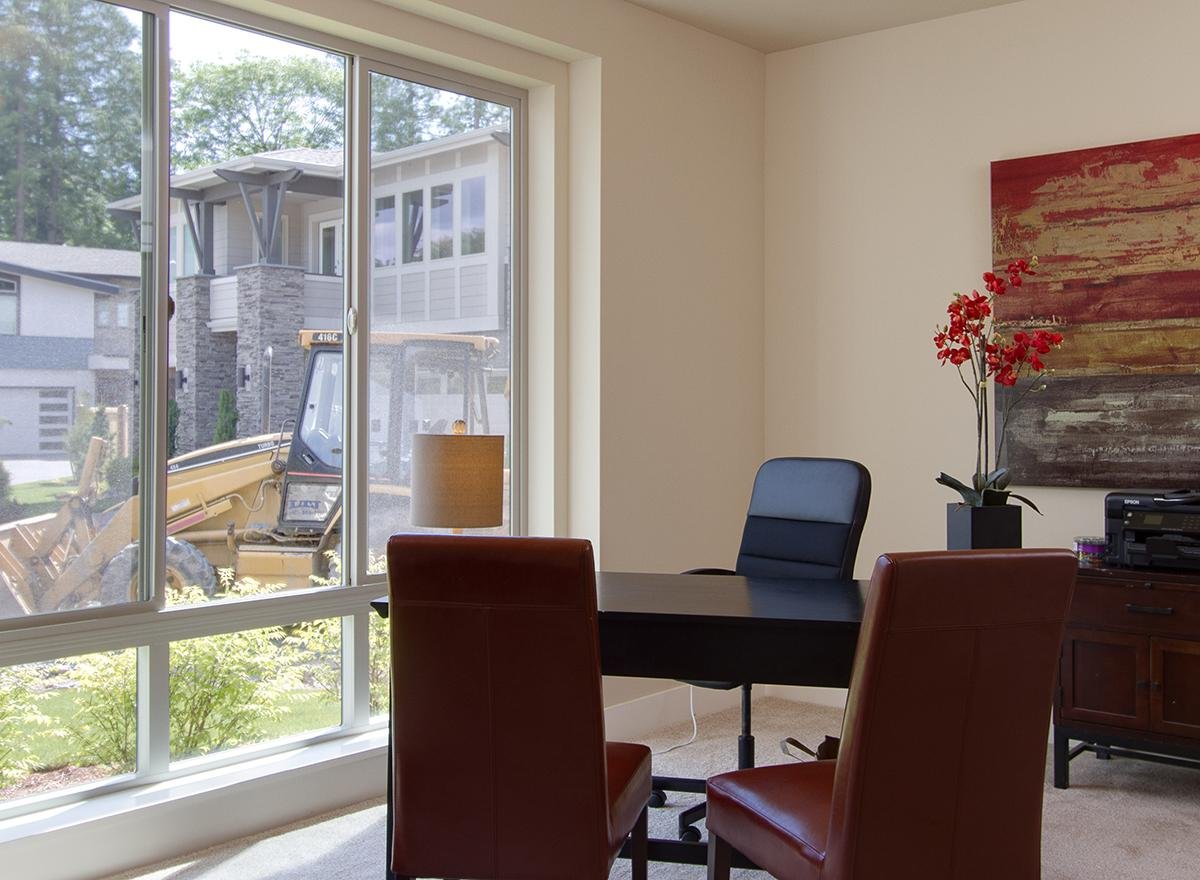

Den

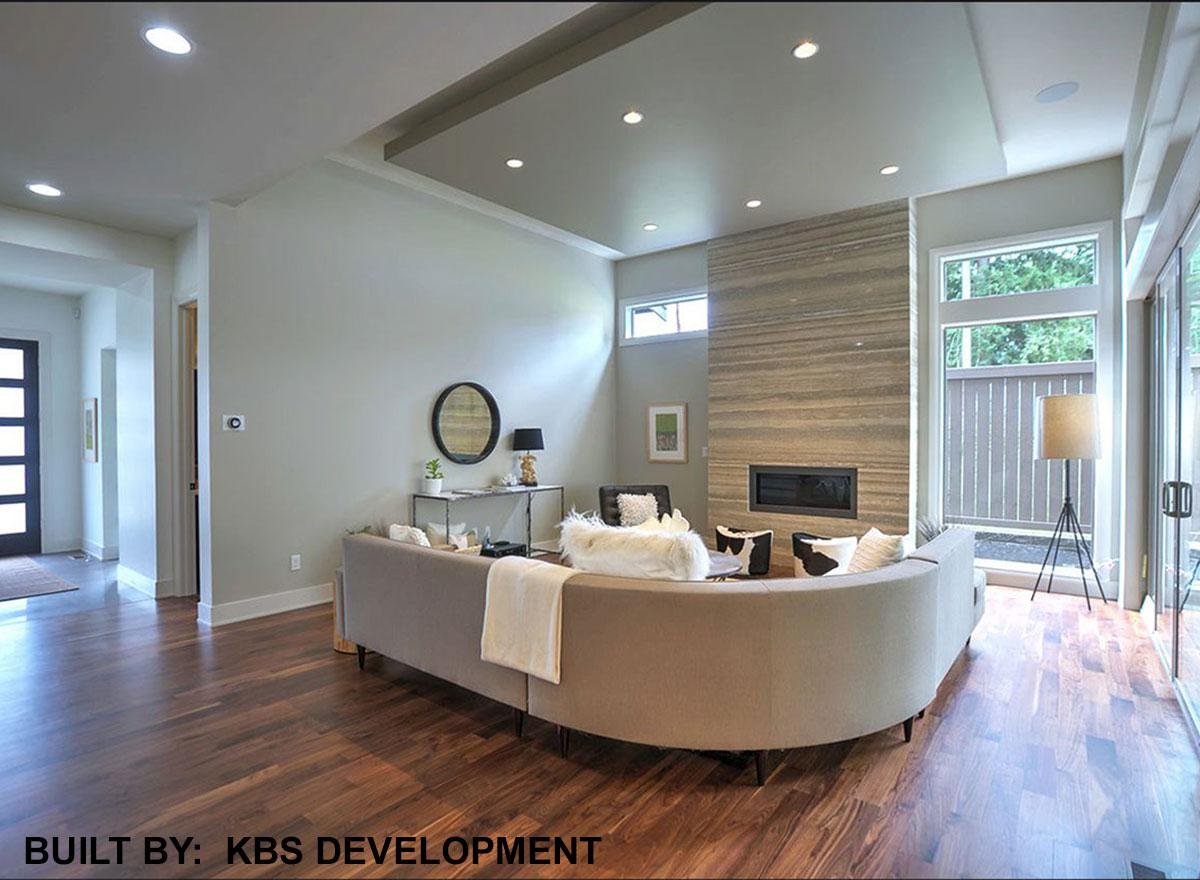

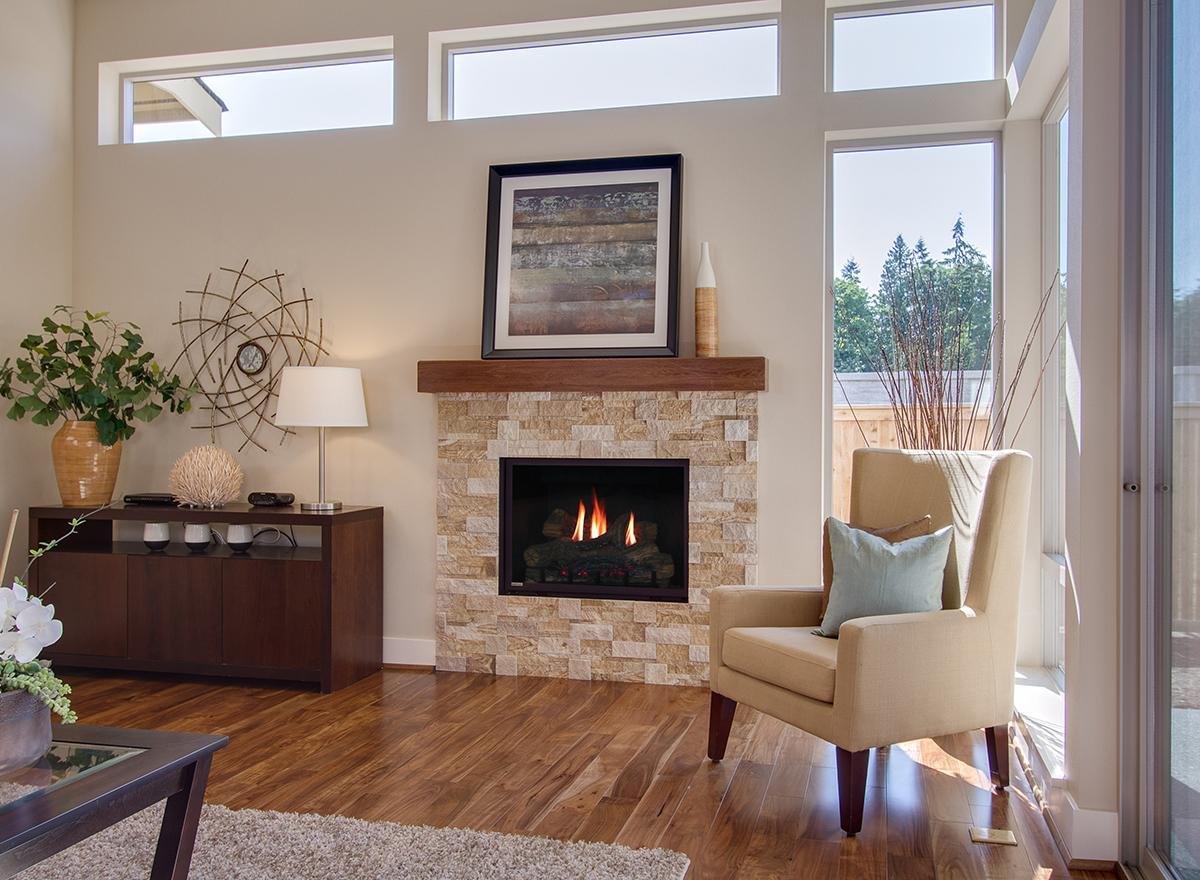

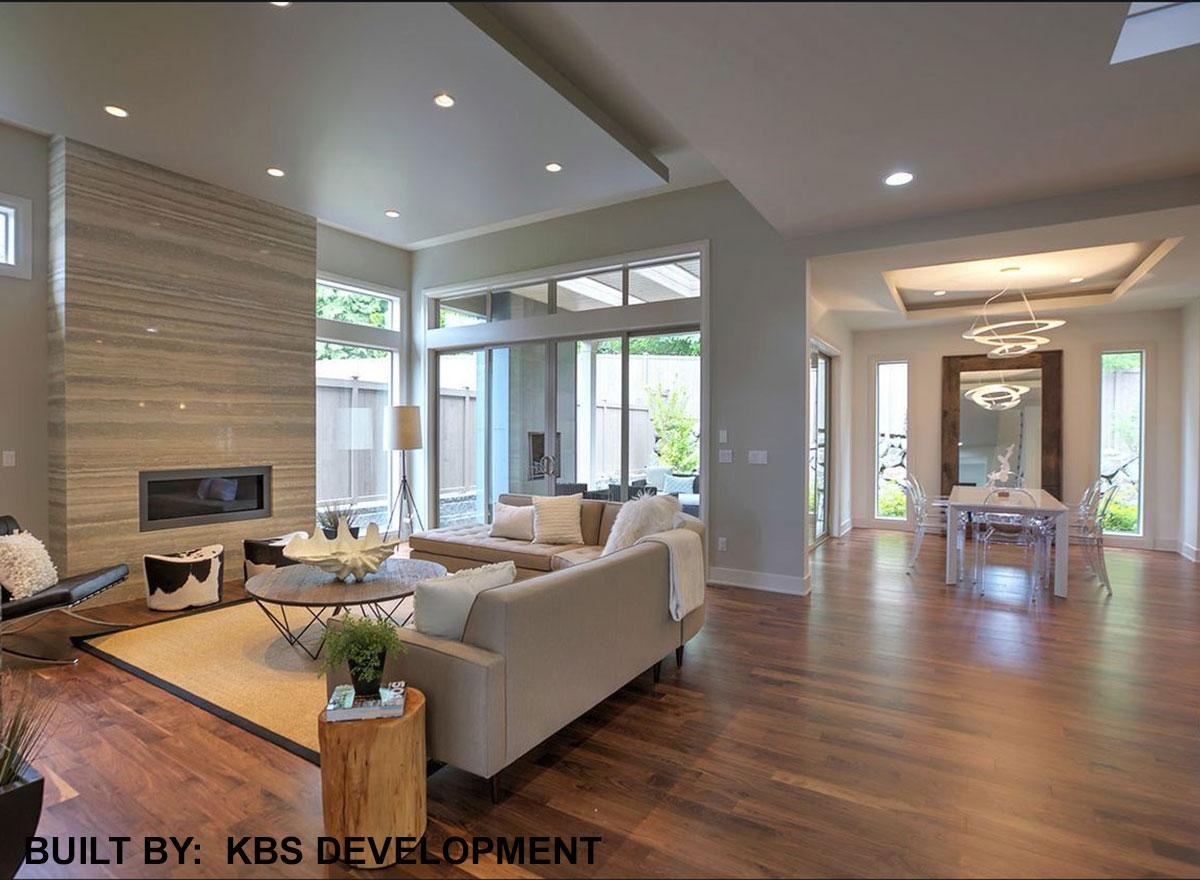

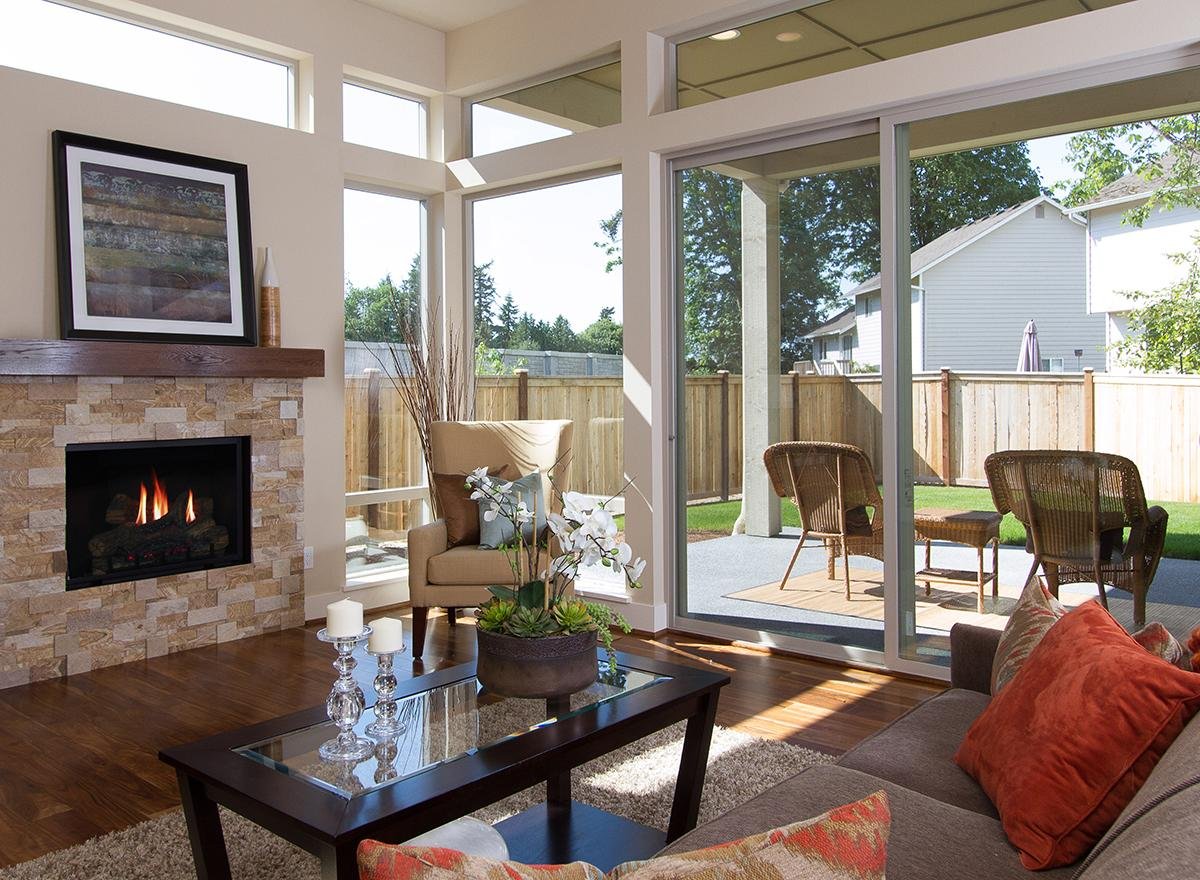

Great Room
Great Room
Great Room

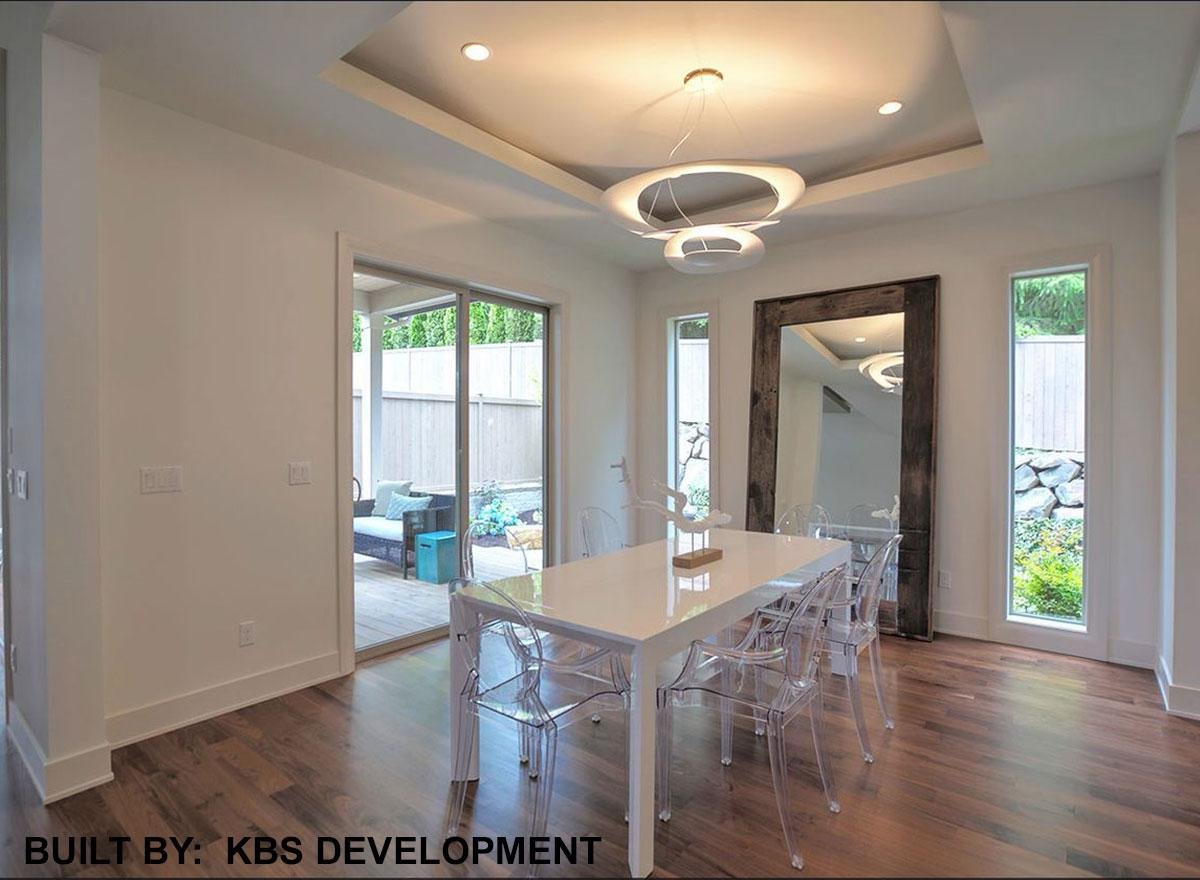

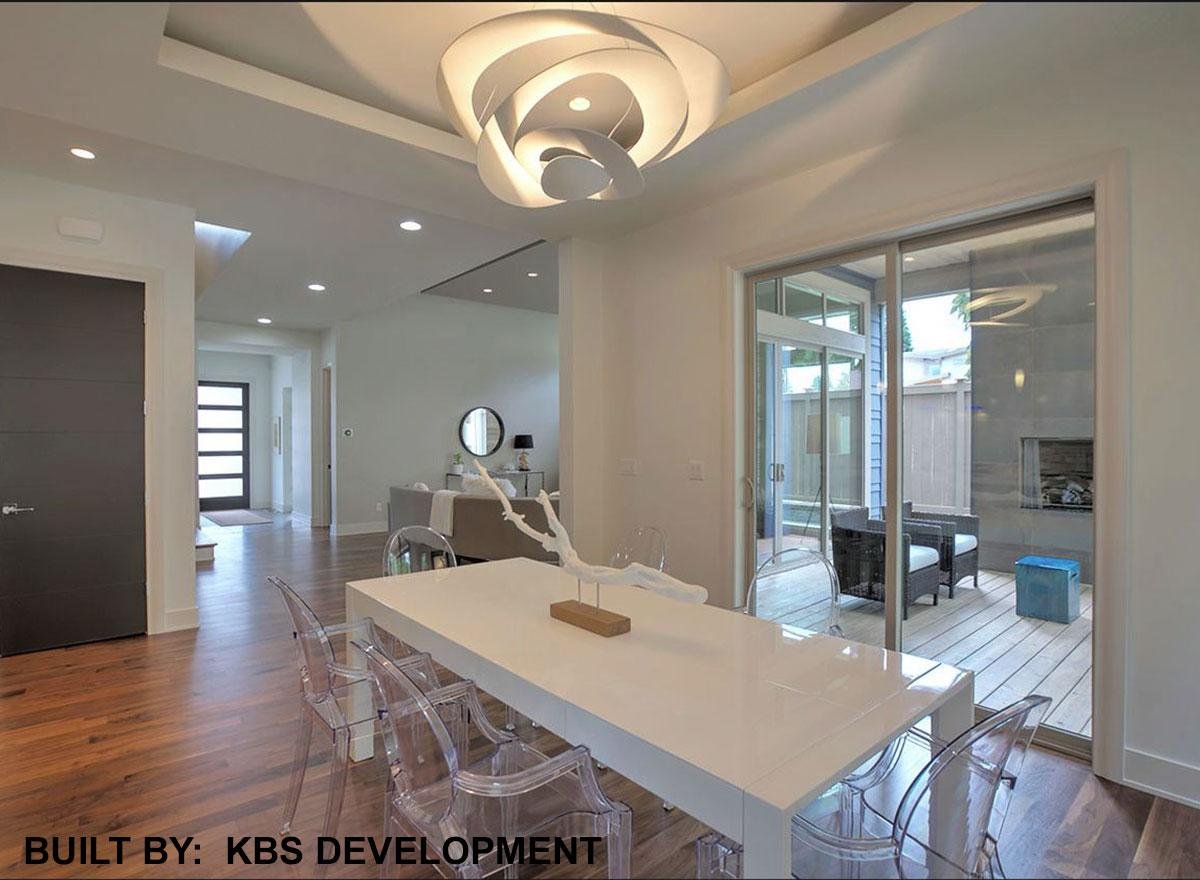

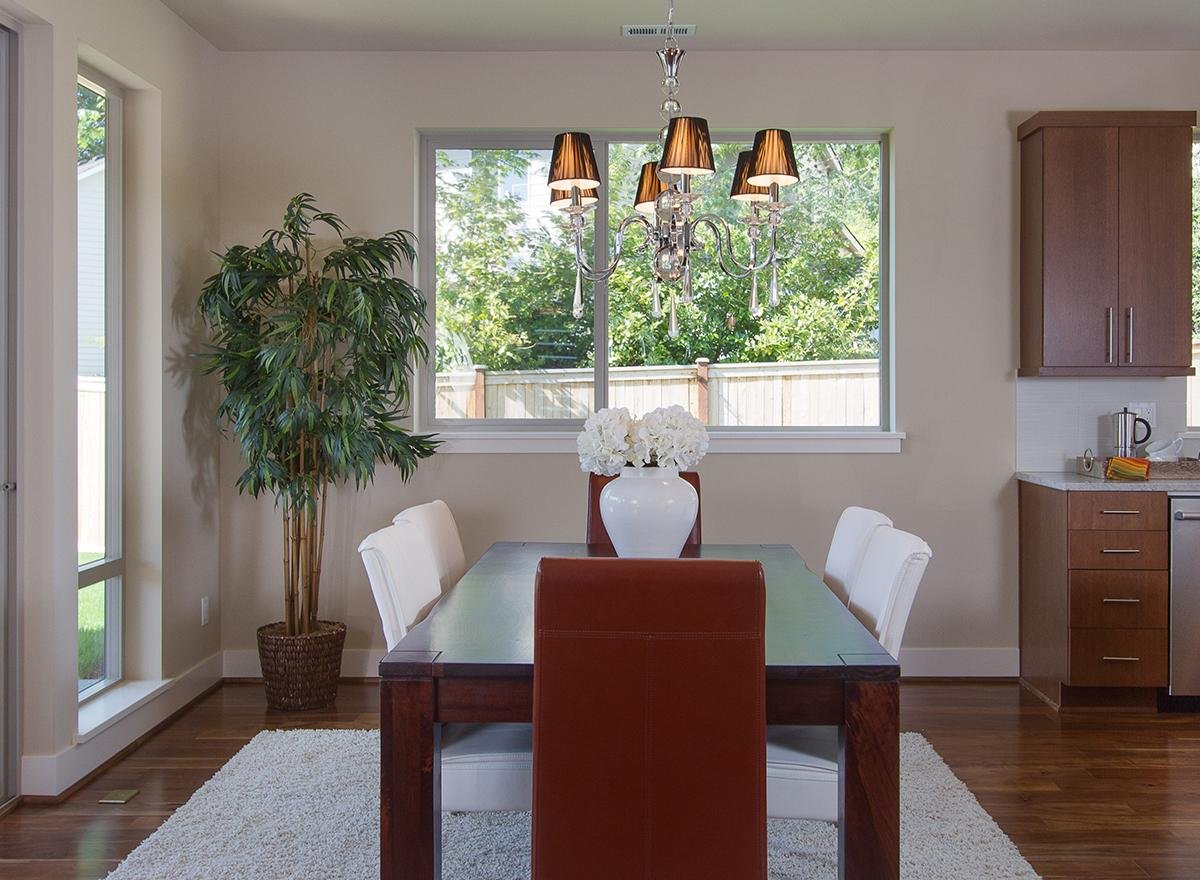

Dining
Dining

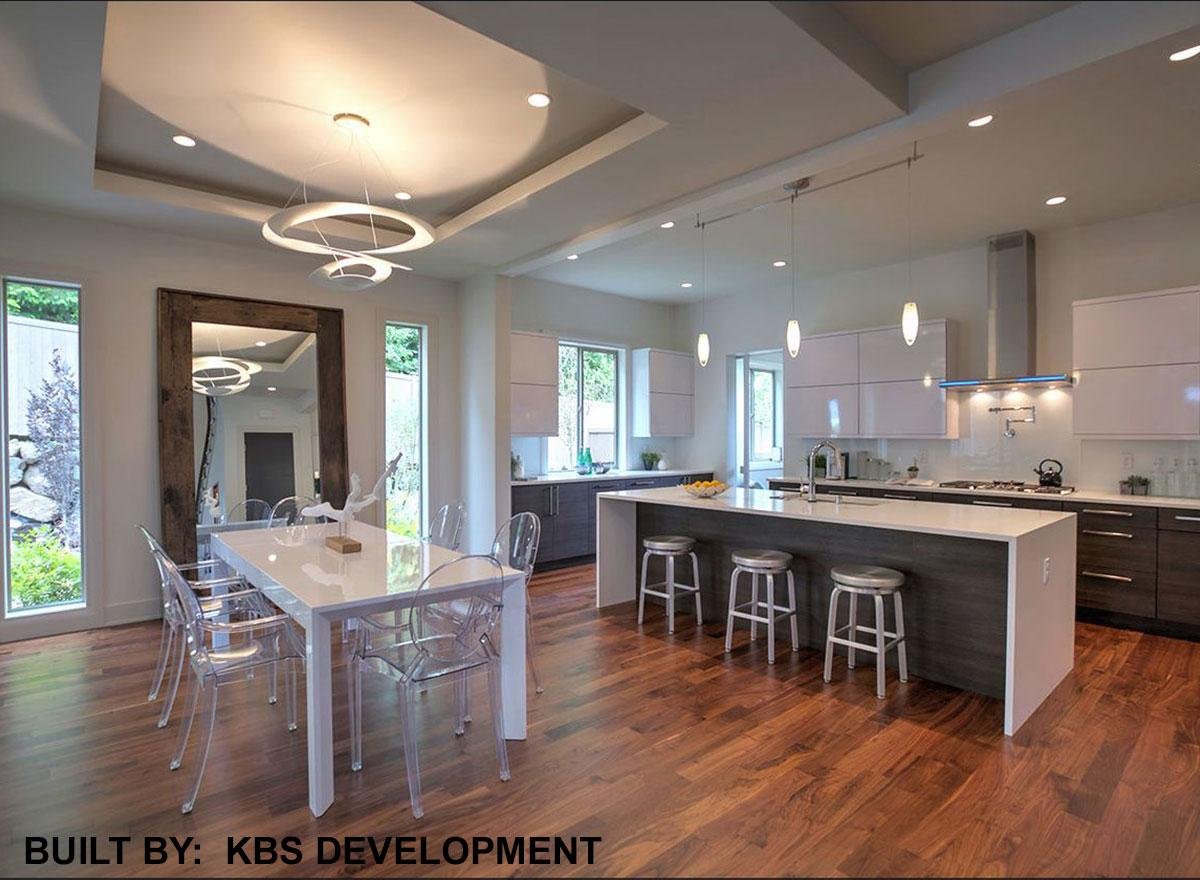

Dining & Kitchen

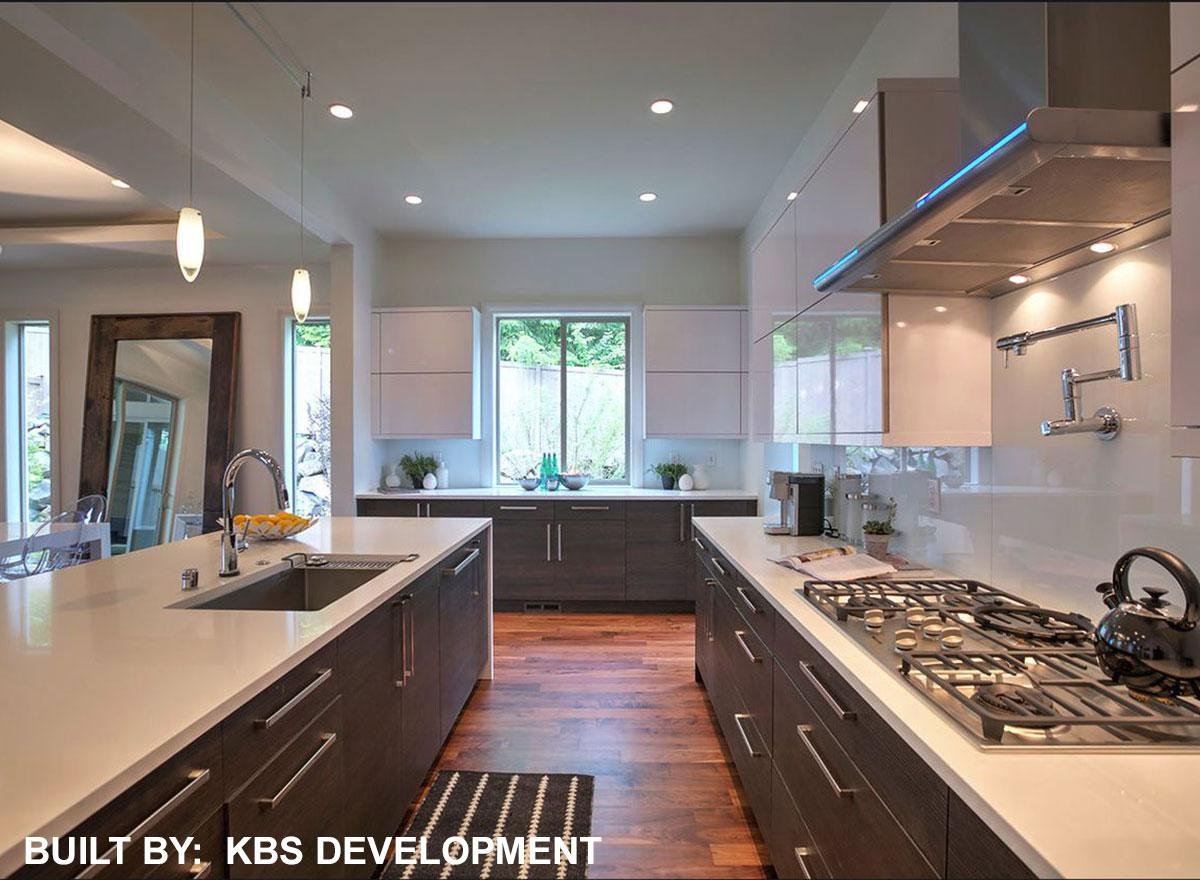

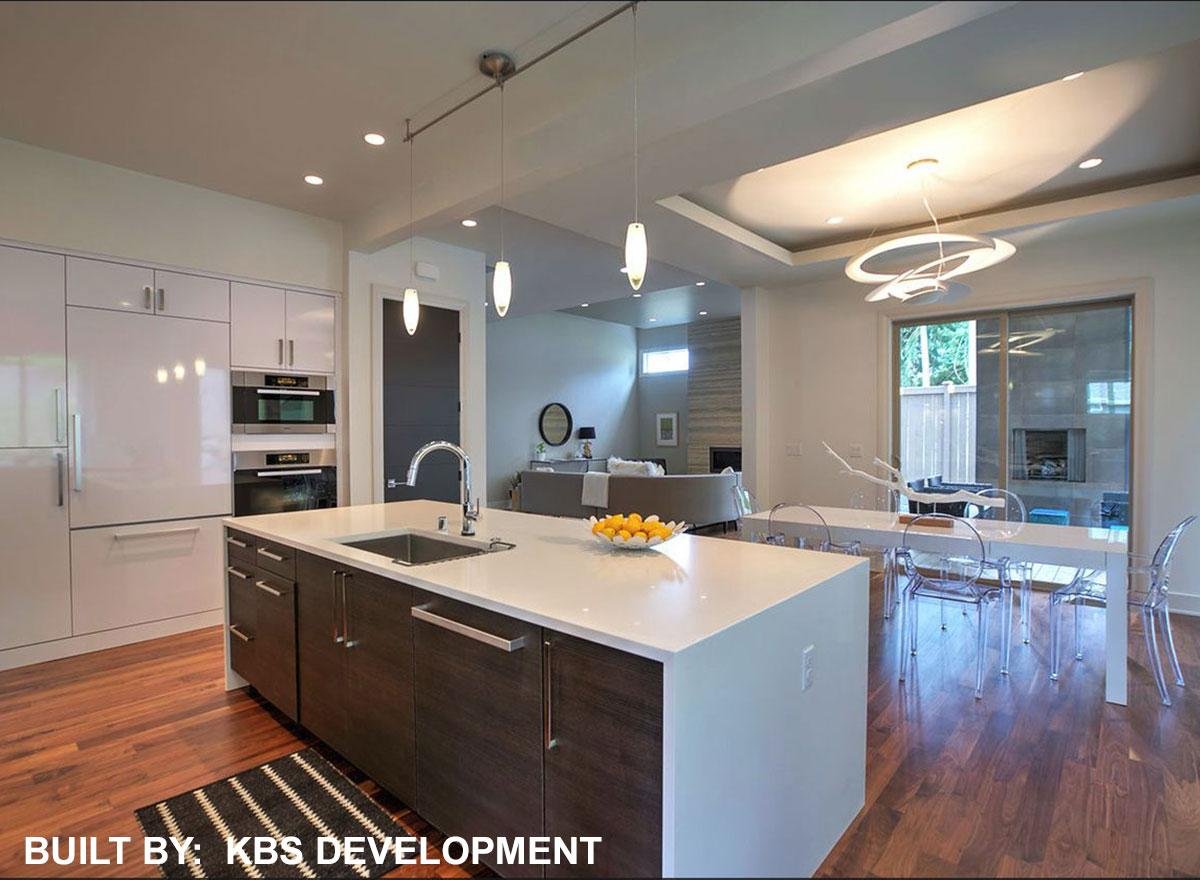

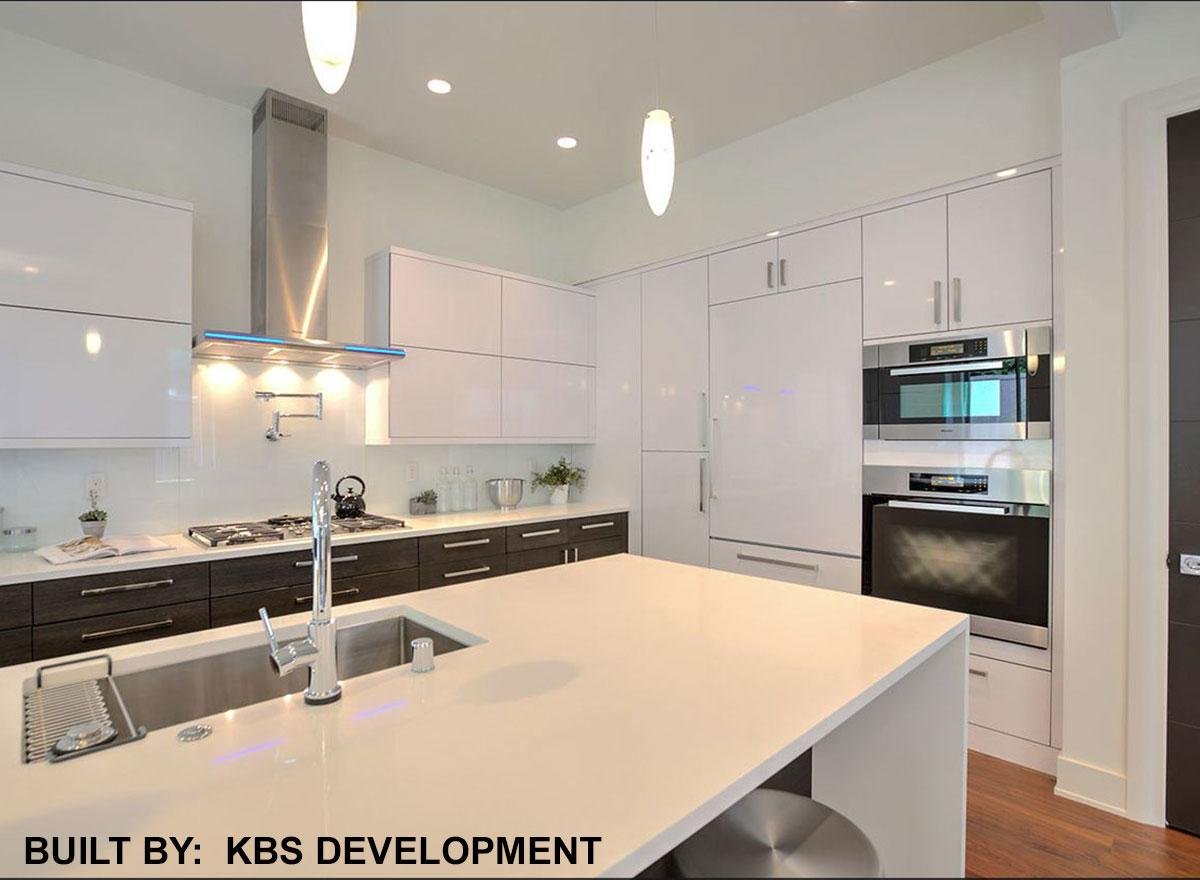

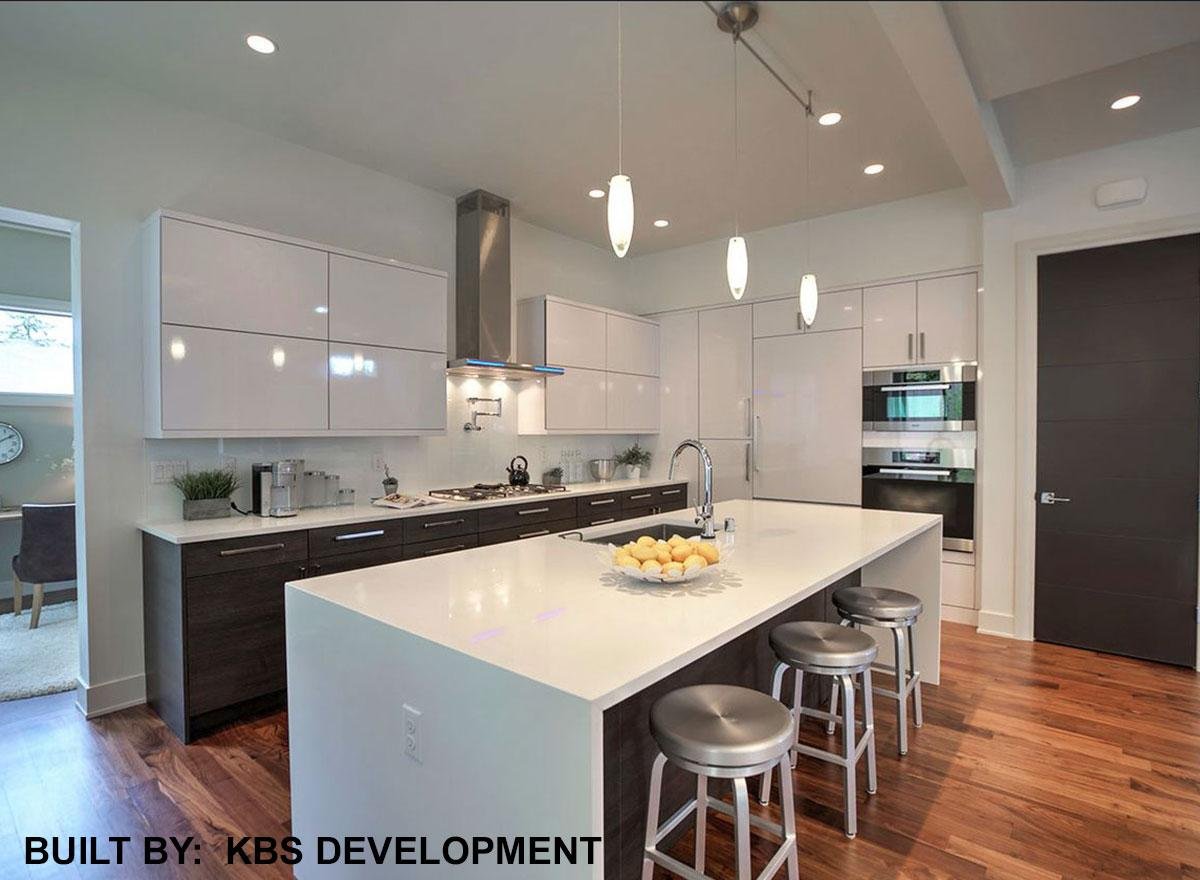

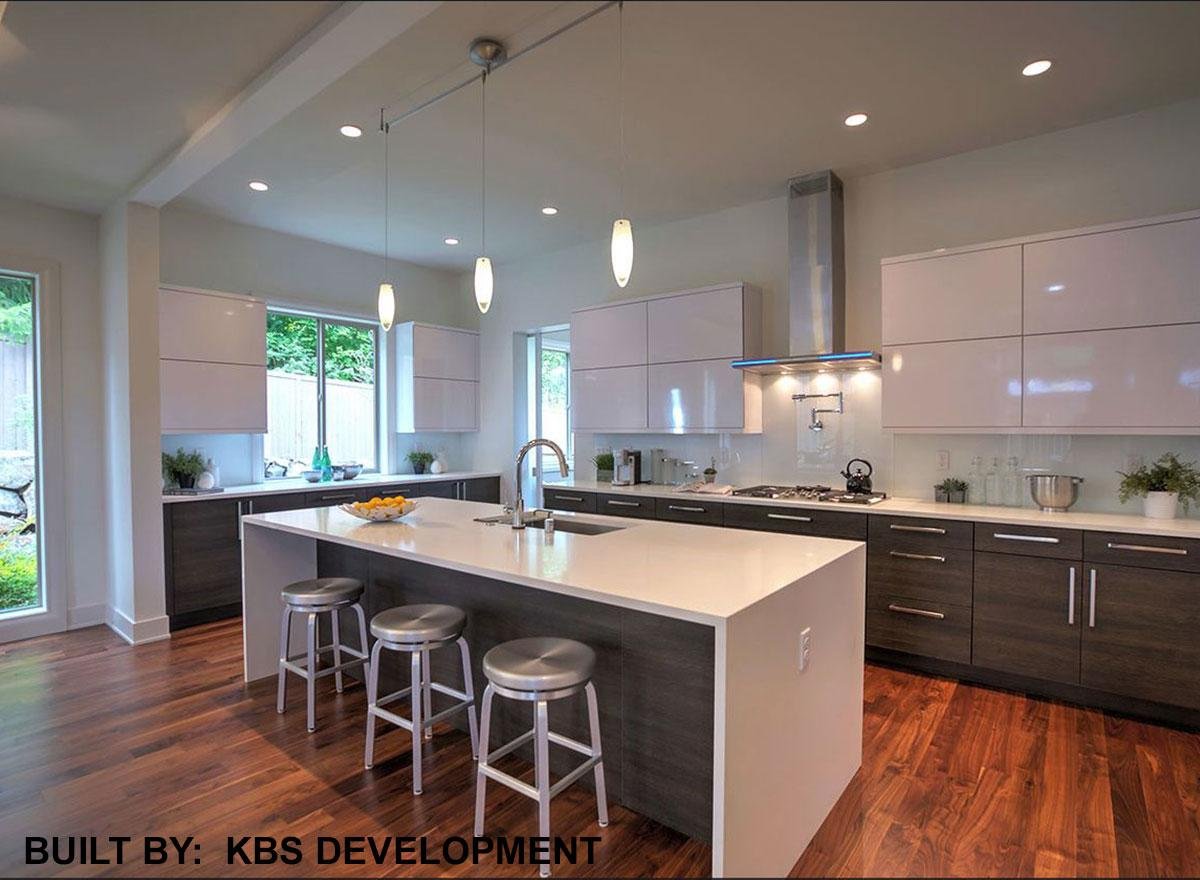

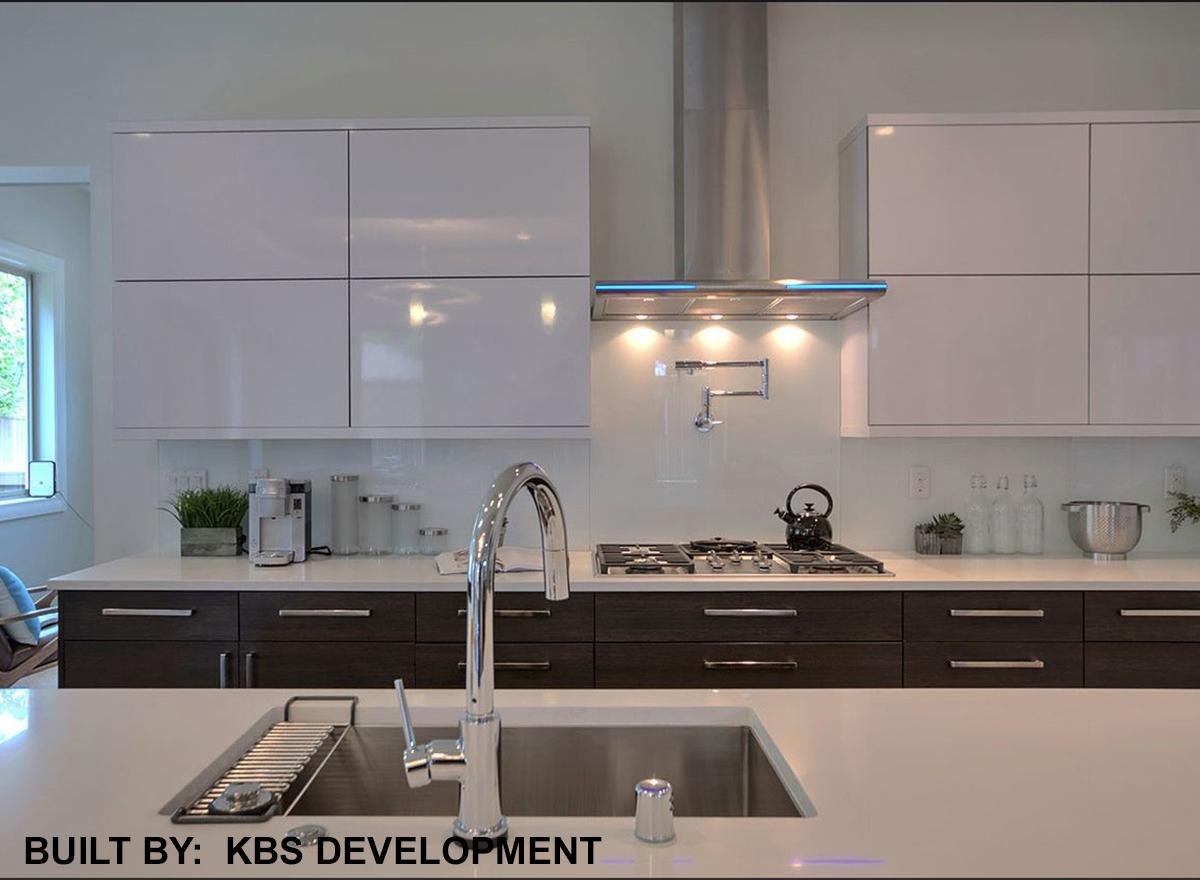

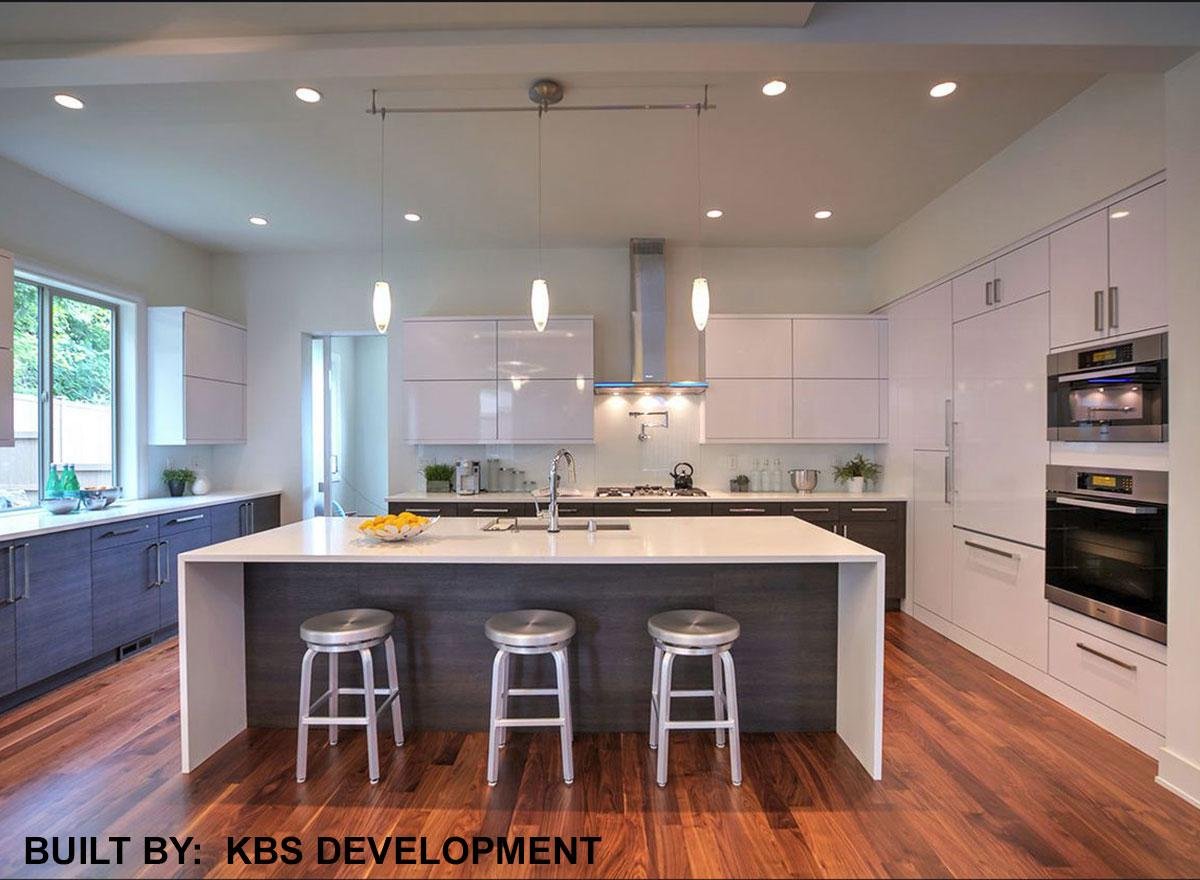

Kitchen
Kitchen
Kitchen
Kitchen
Kitchen
Kitchen
Kitchen
Kitchen

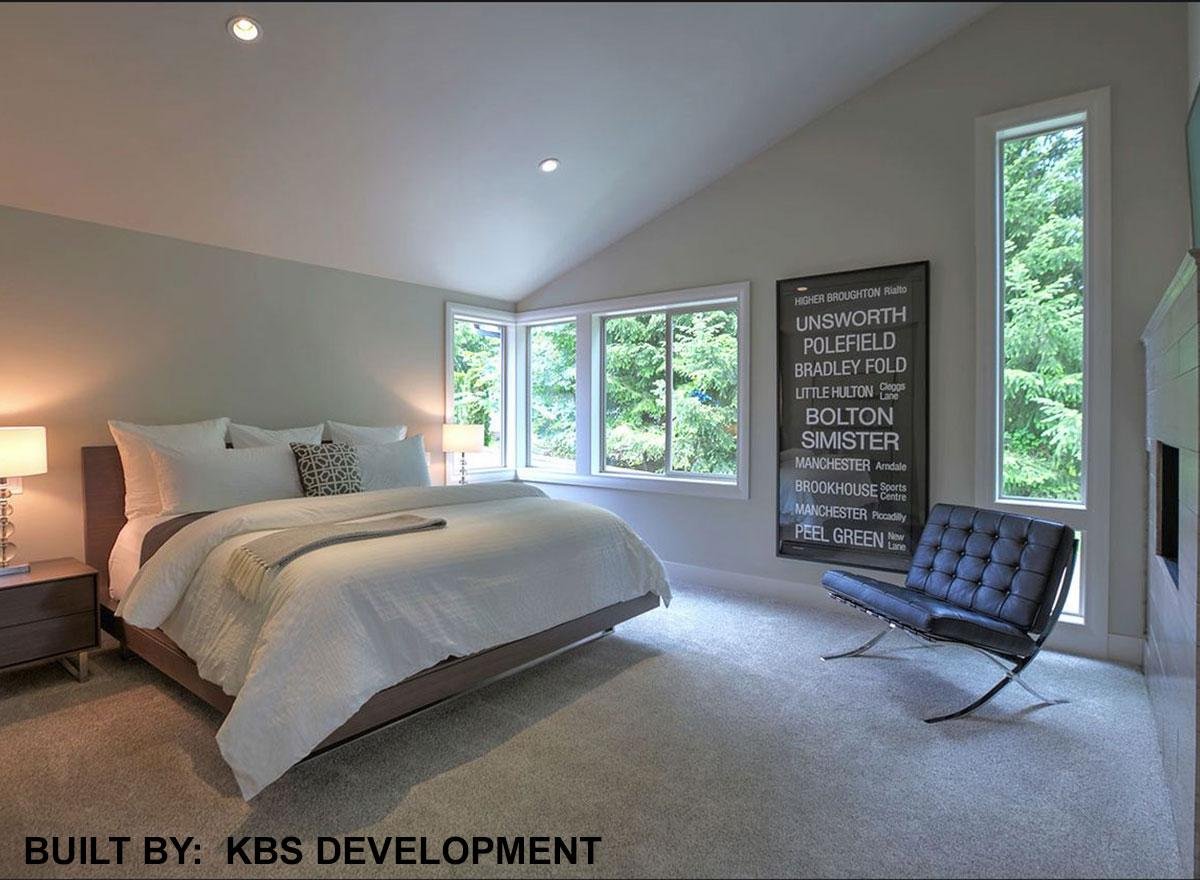

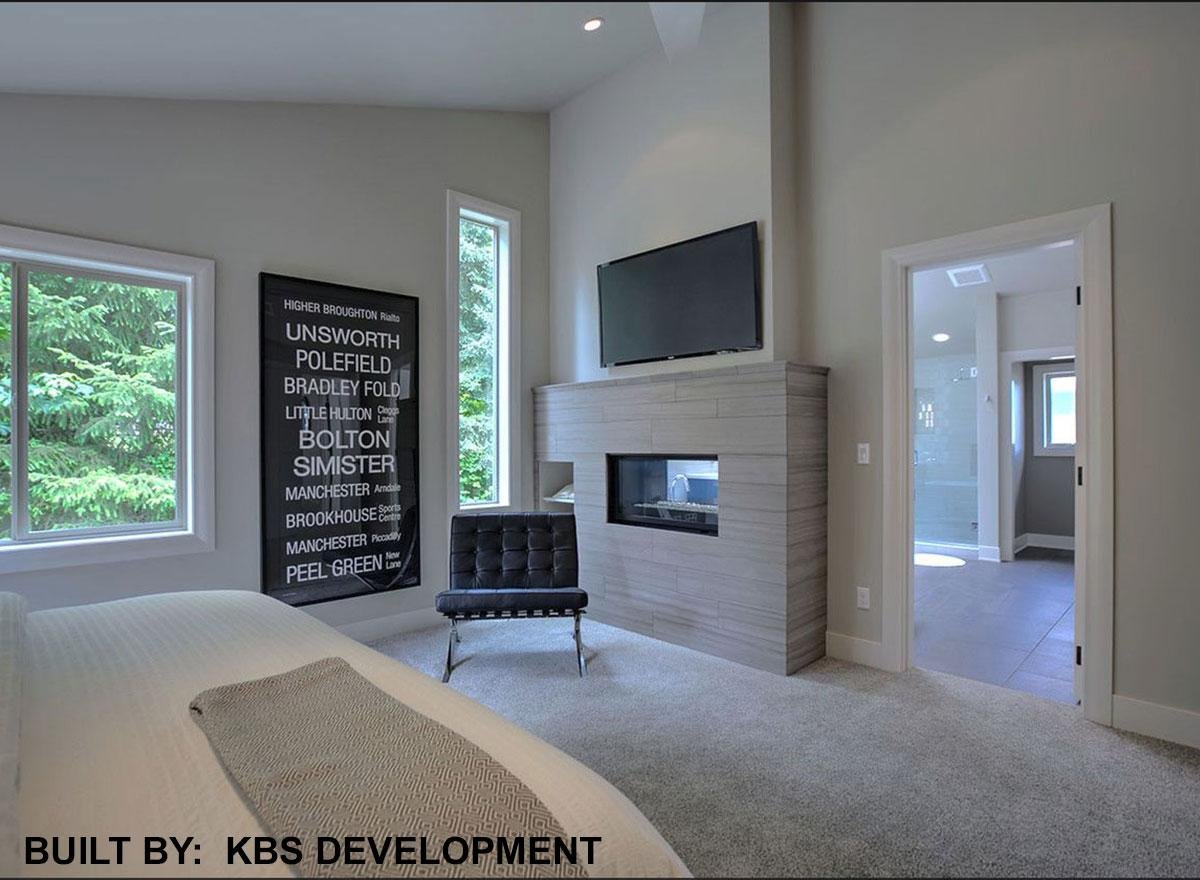

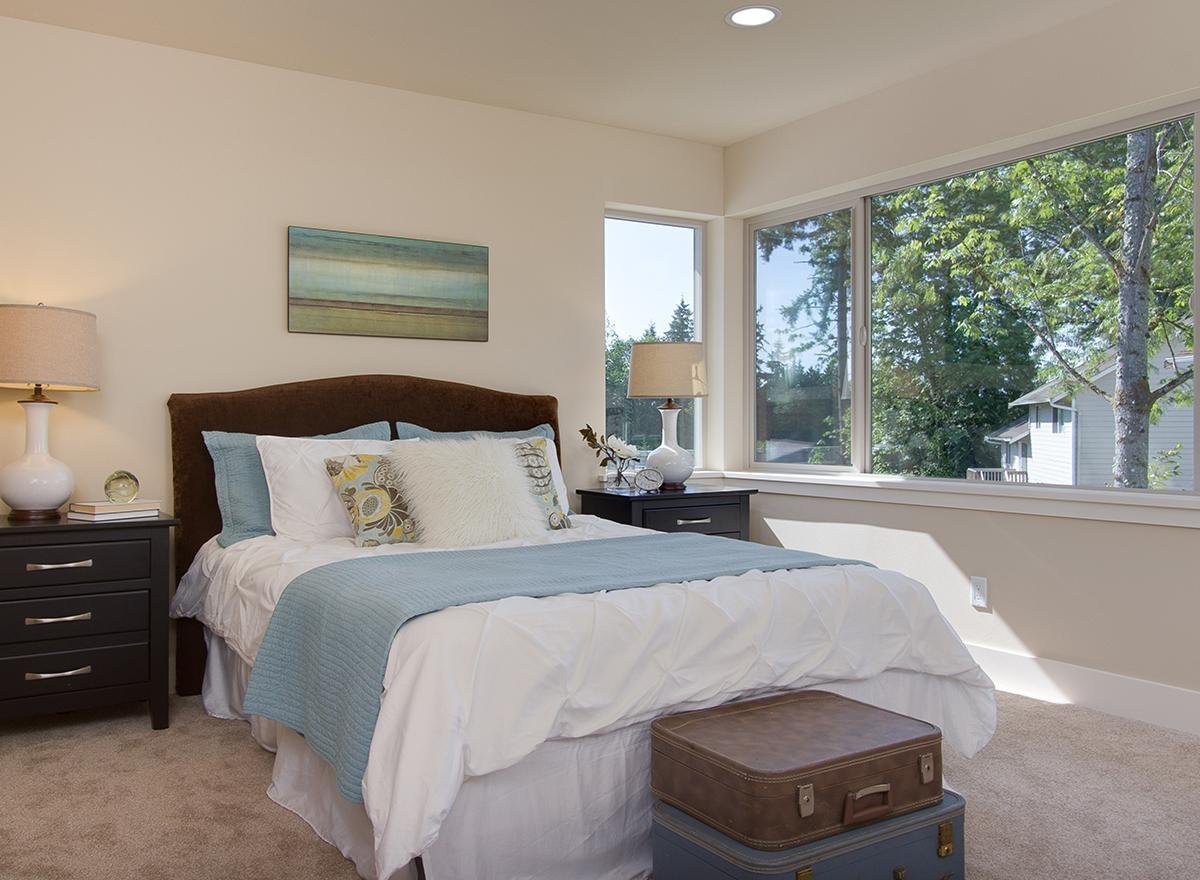

Master Bedroom
Master Bedroom

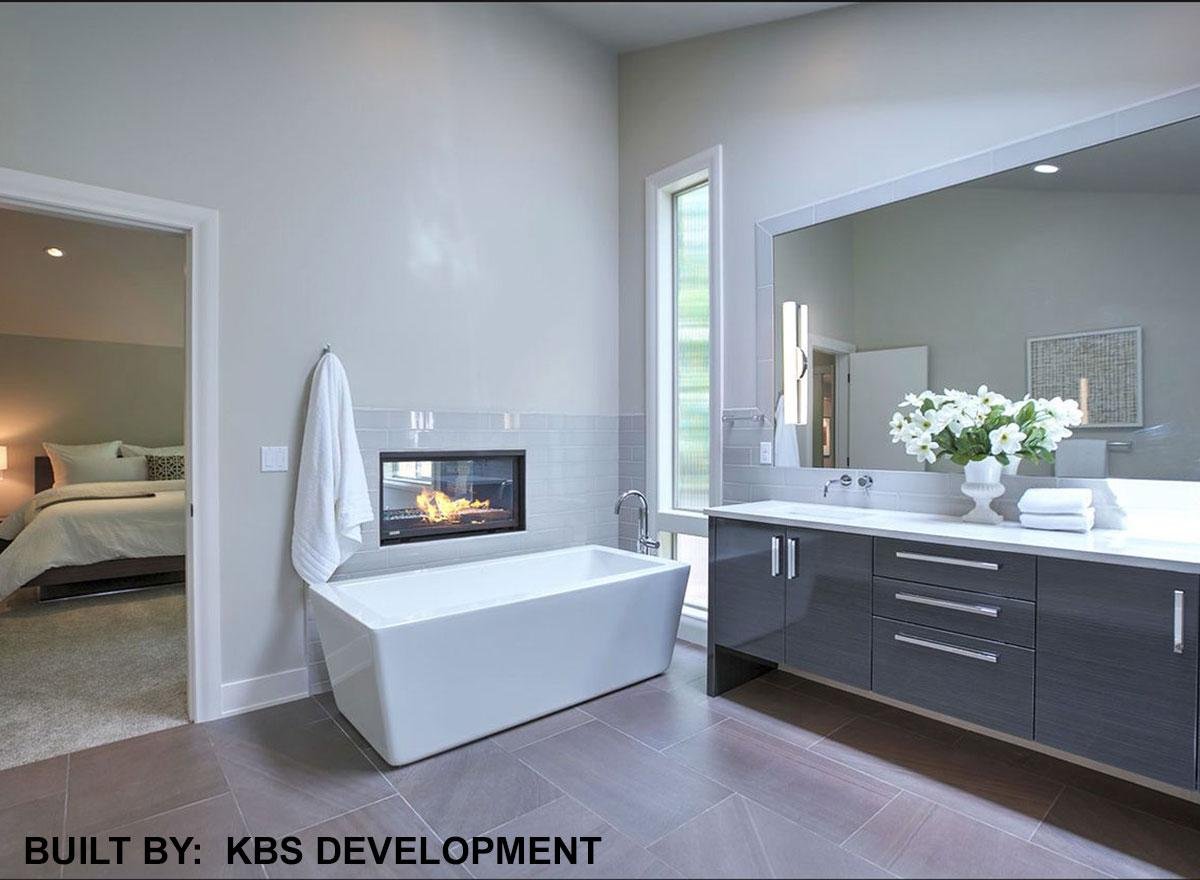

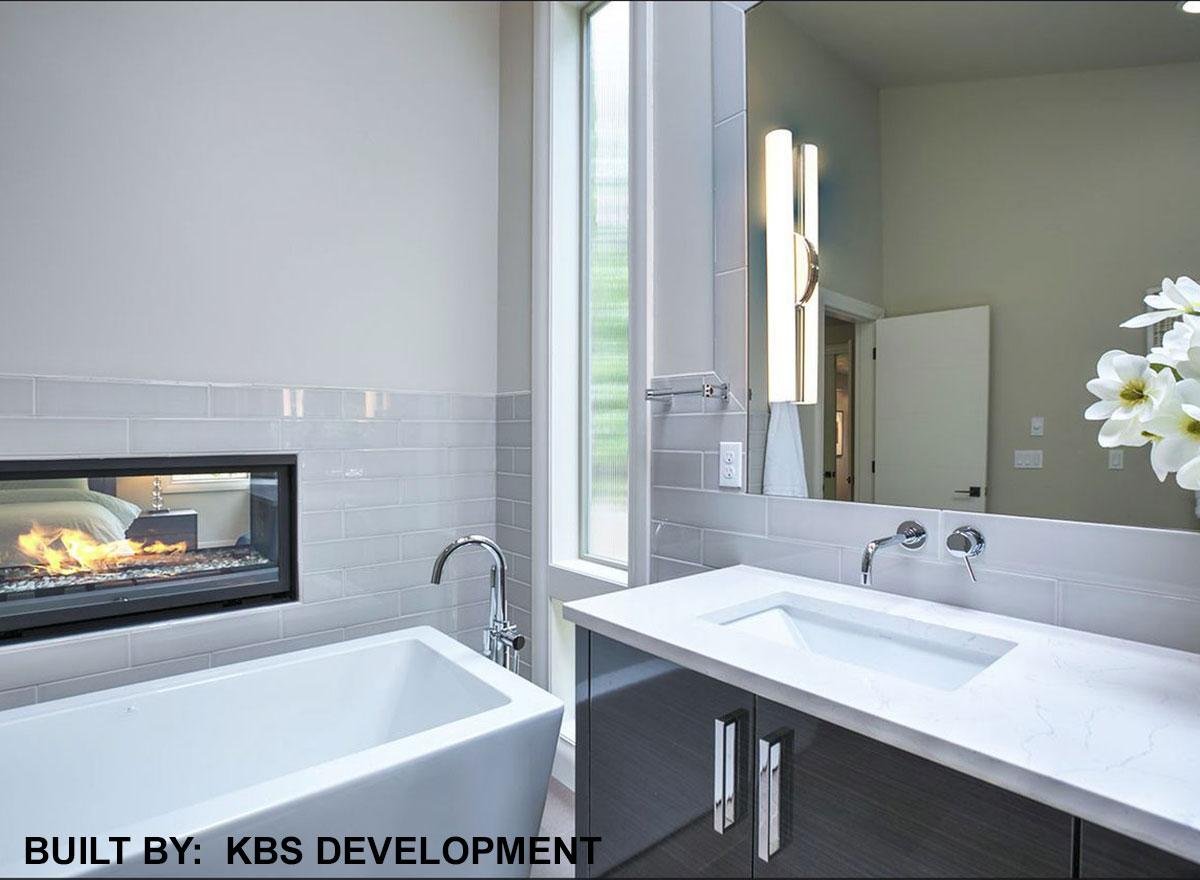

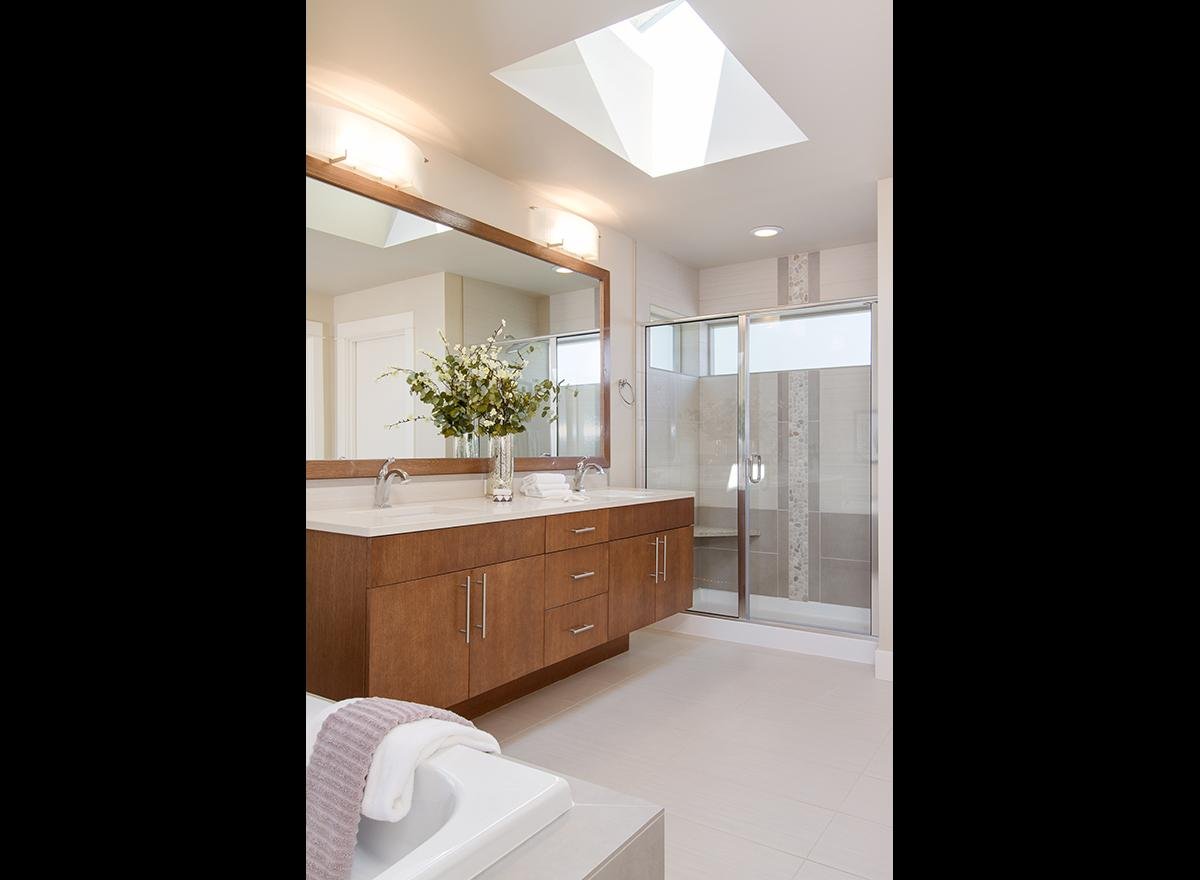

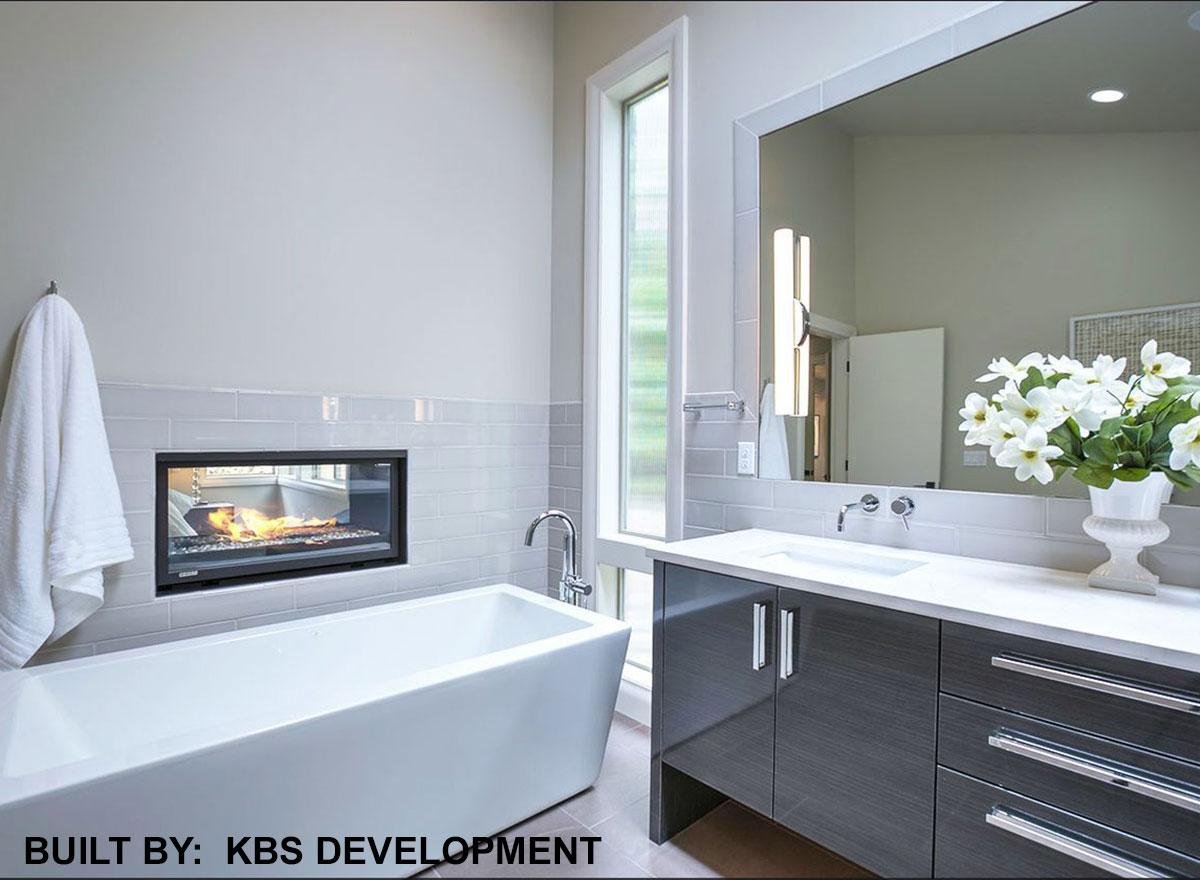

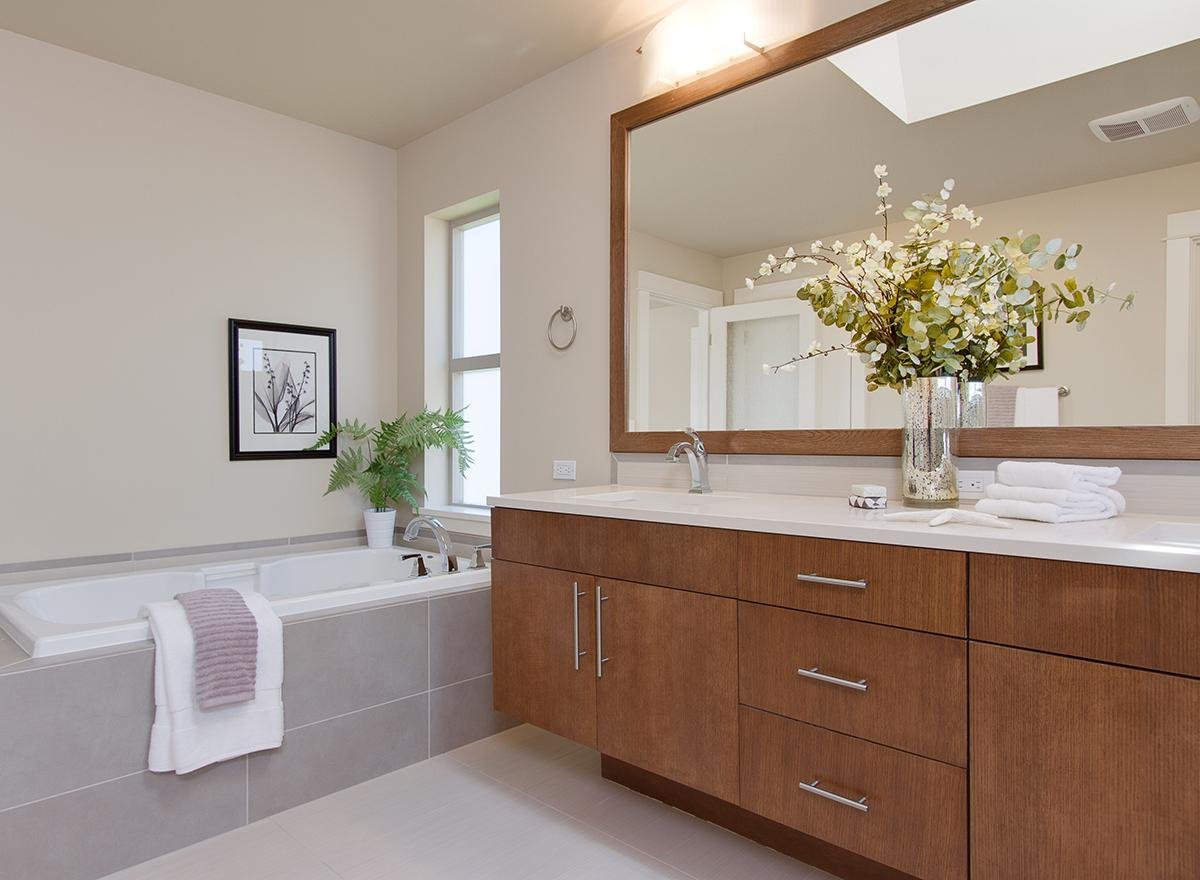

Master Bath

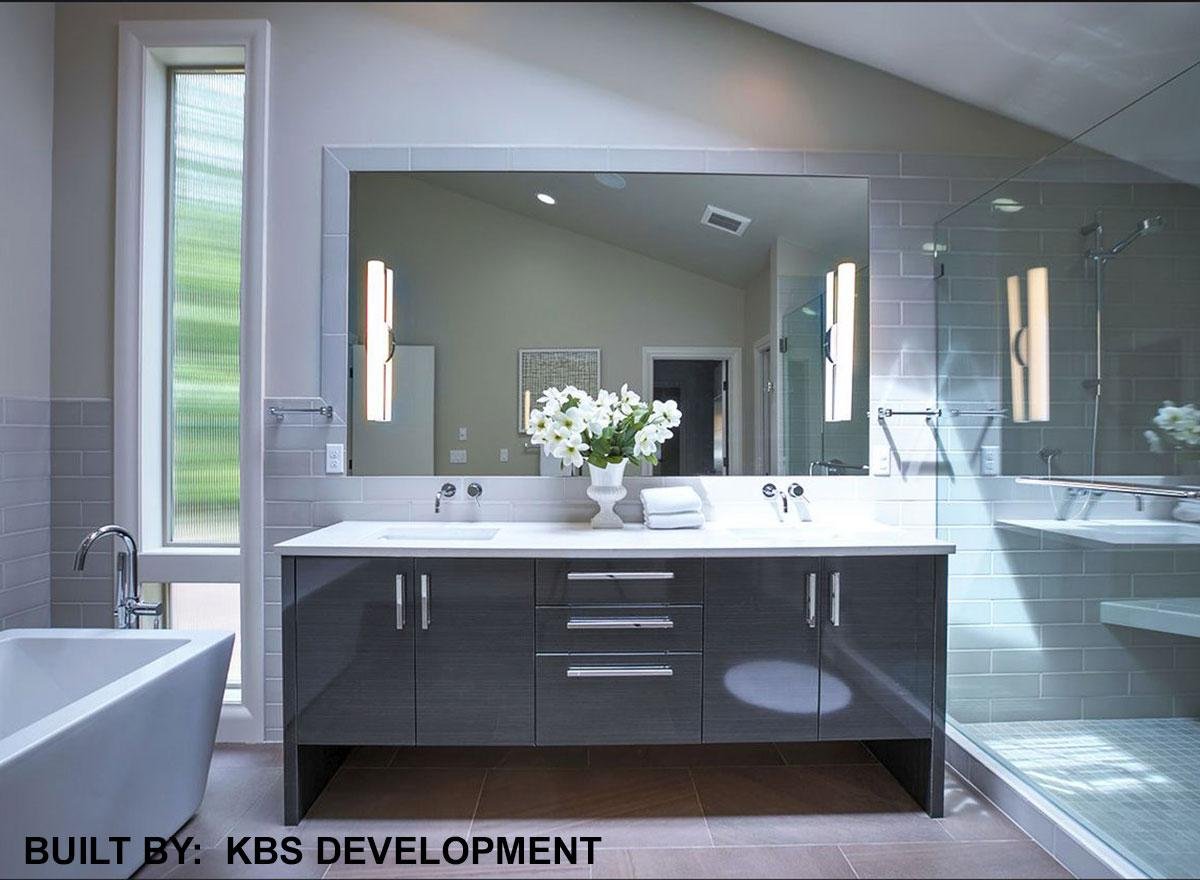

Master Bath
Master Bath
Master Bath

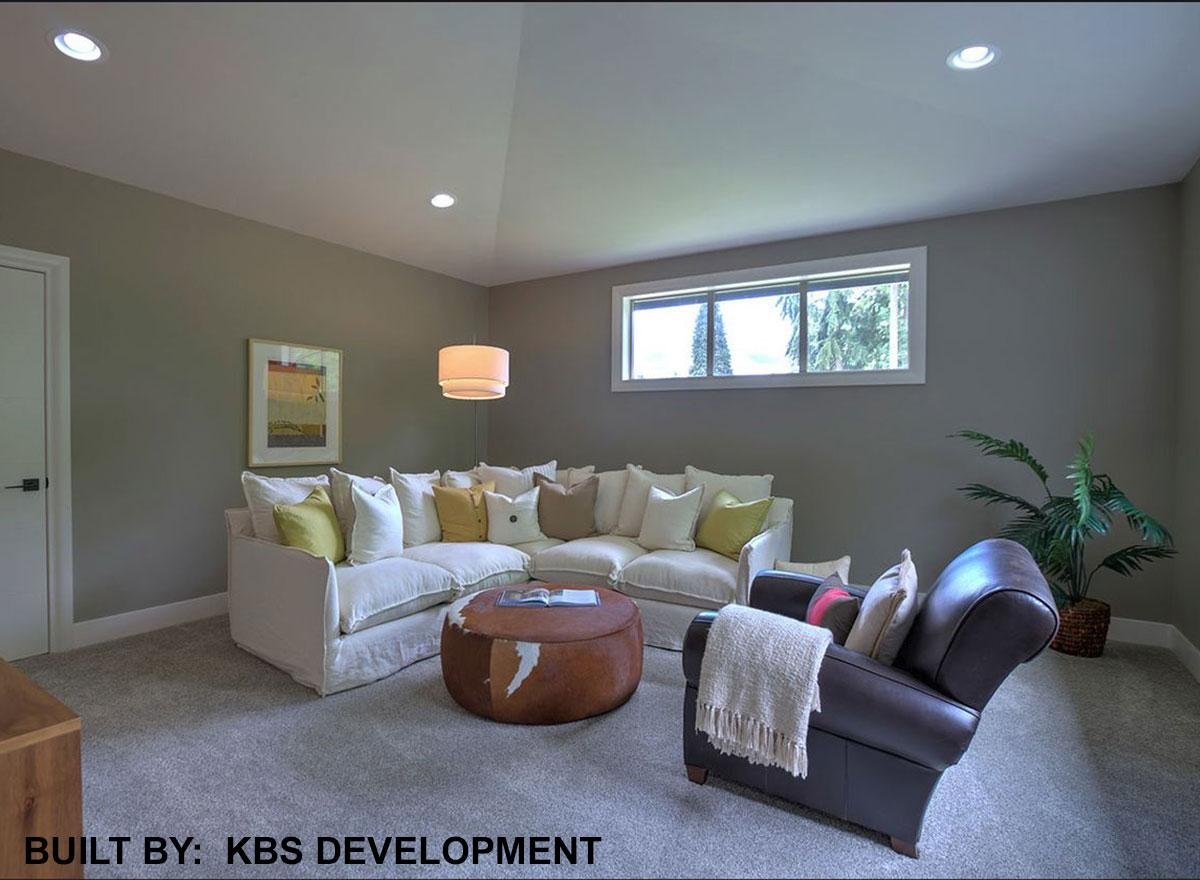

Bonus

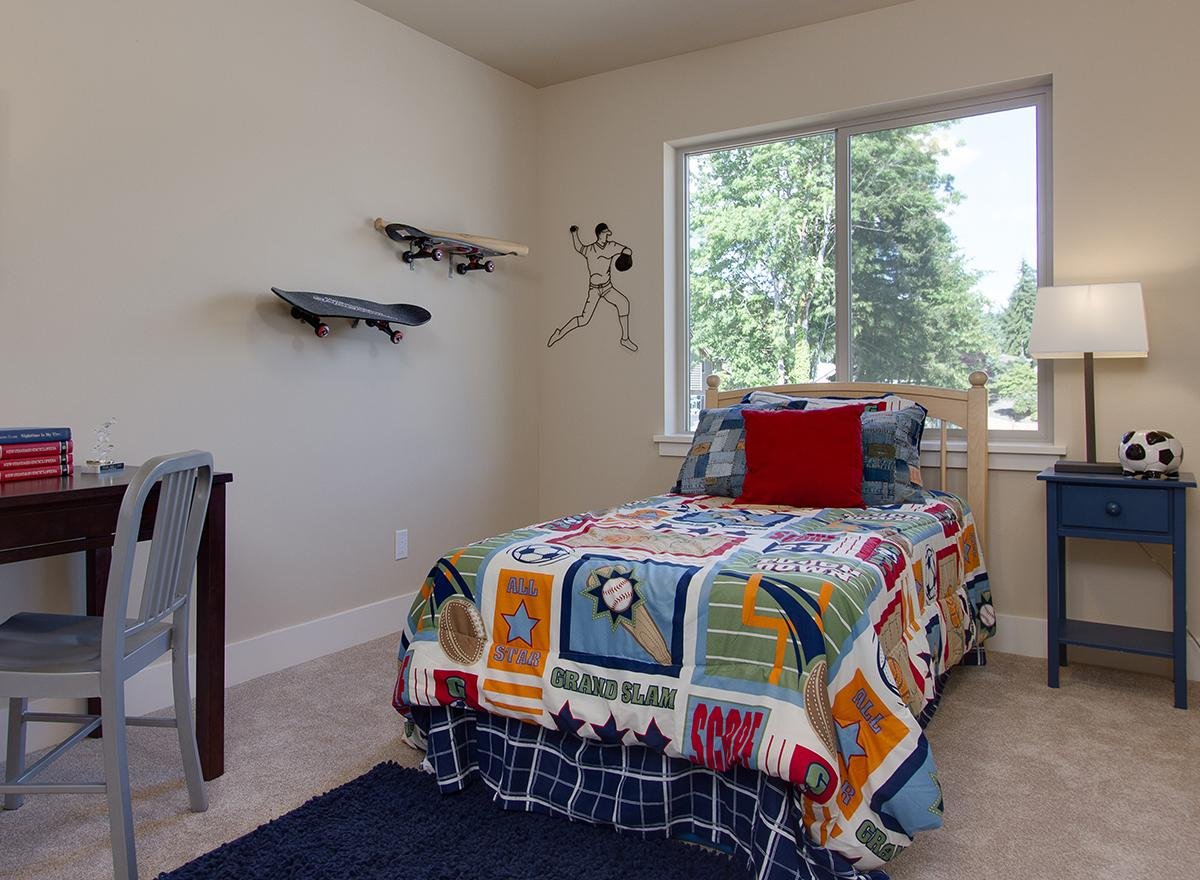

Bedroom 2

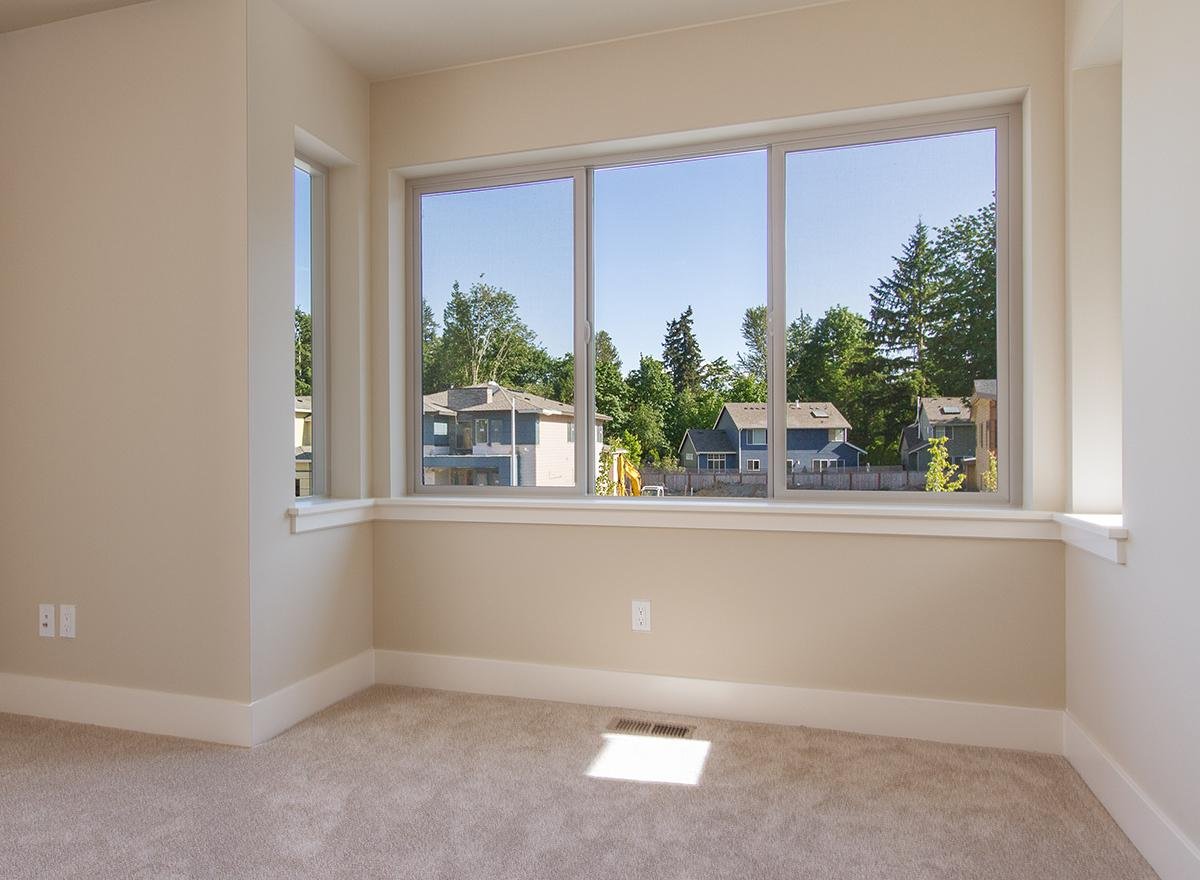

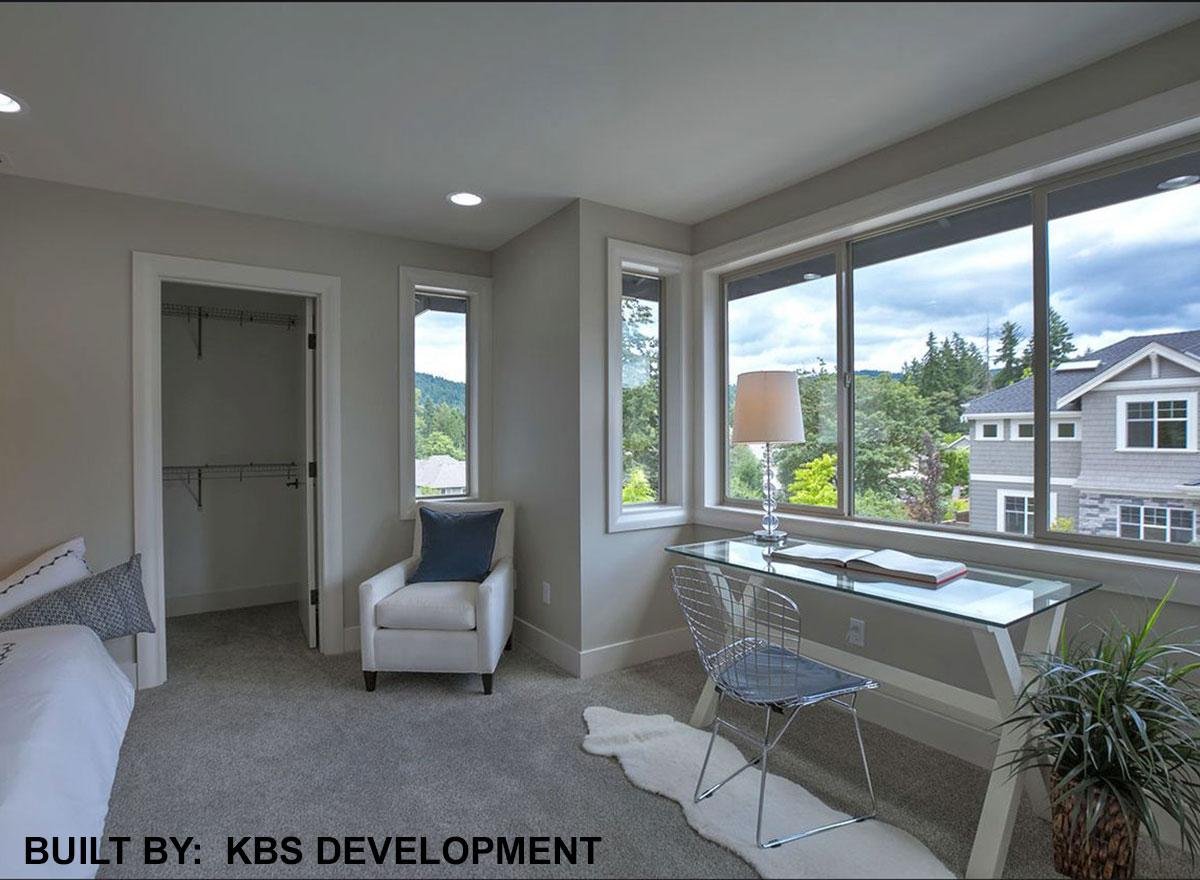

Bedroom 3

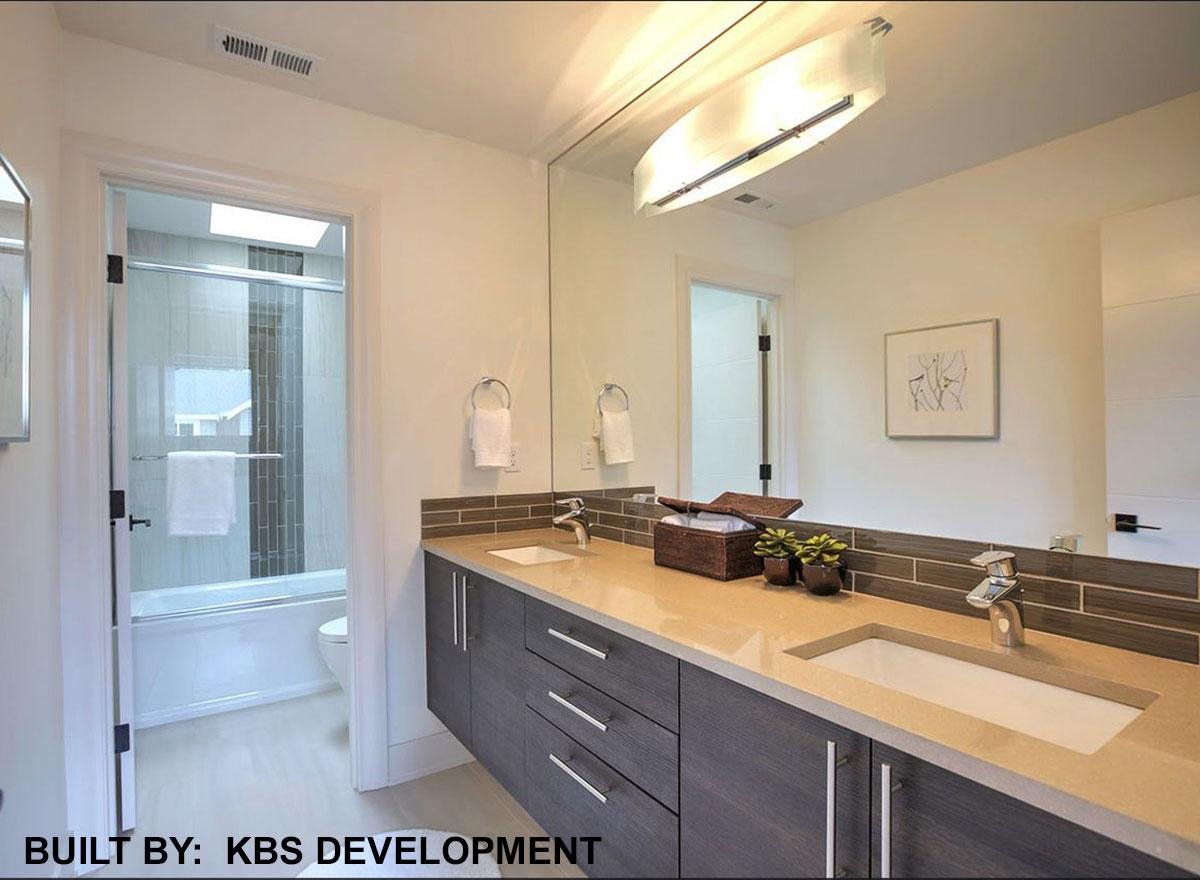

Bath 3

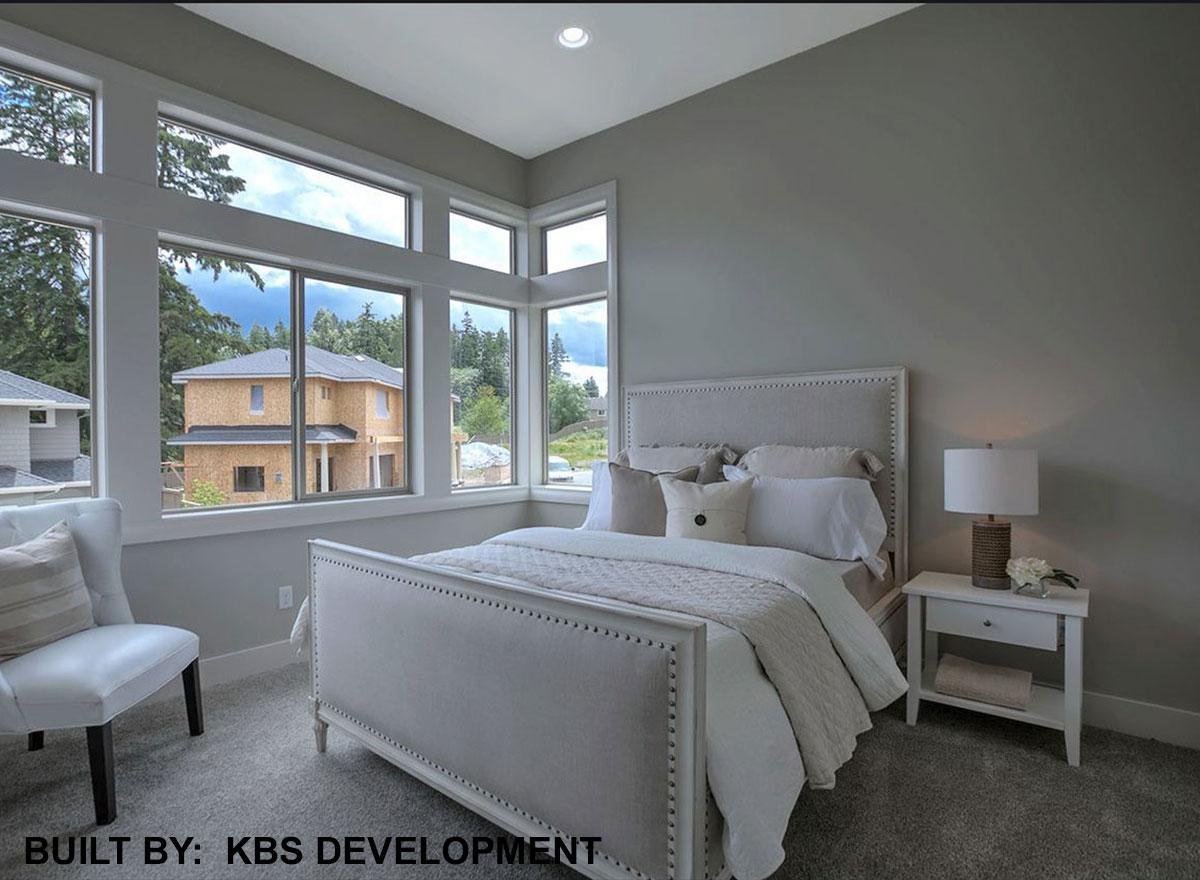

Bedroom 4

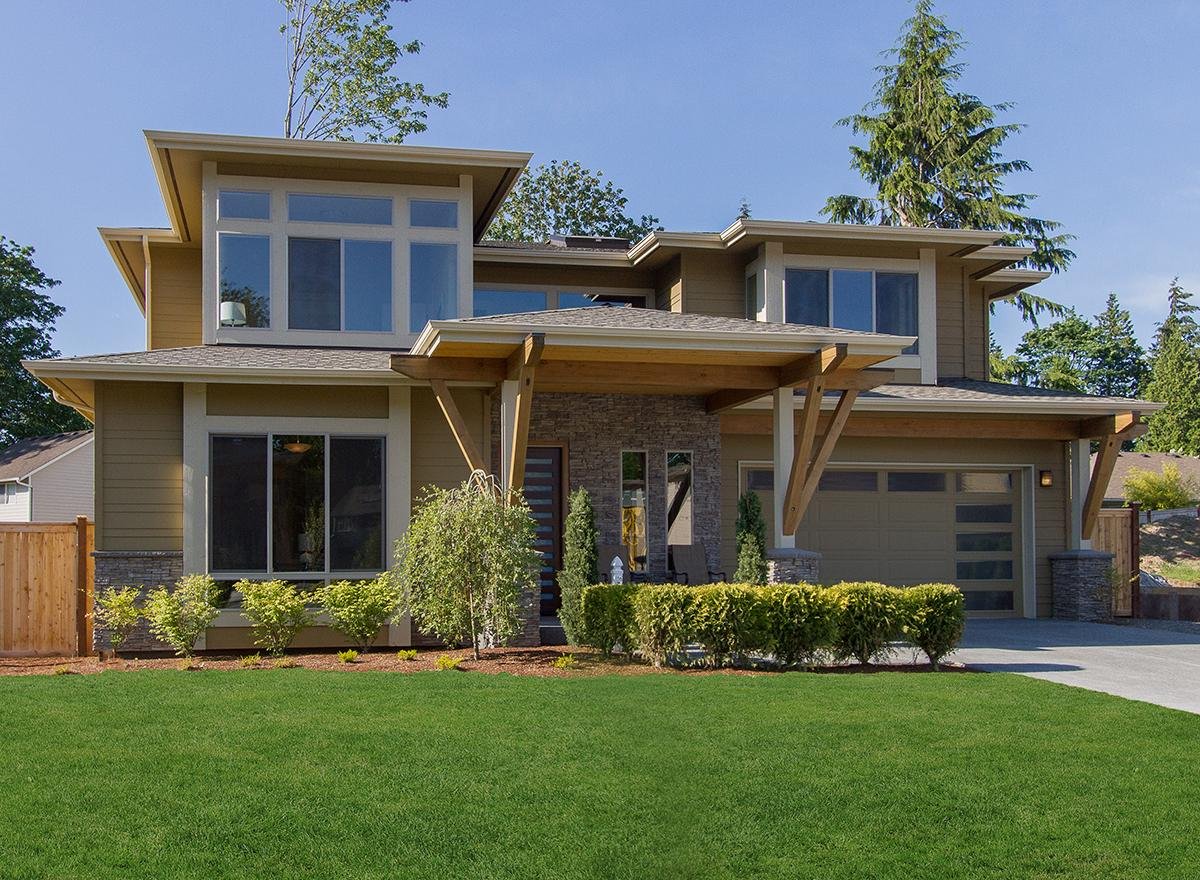

Front Photo
Front Photo

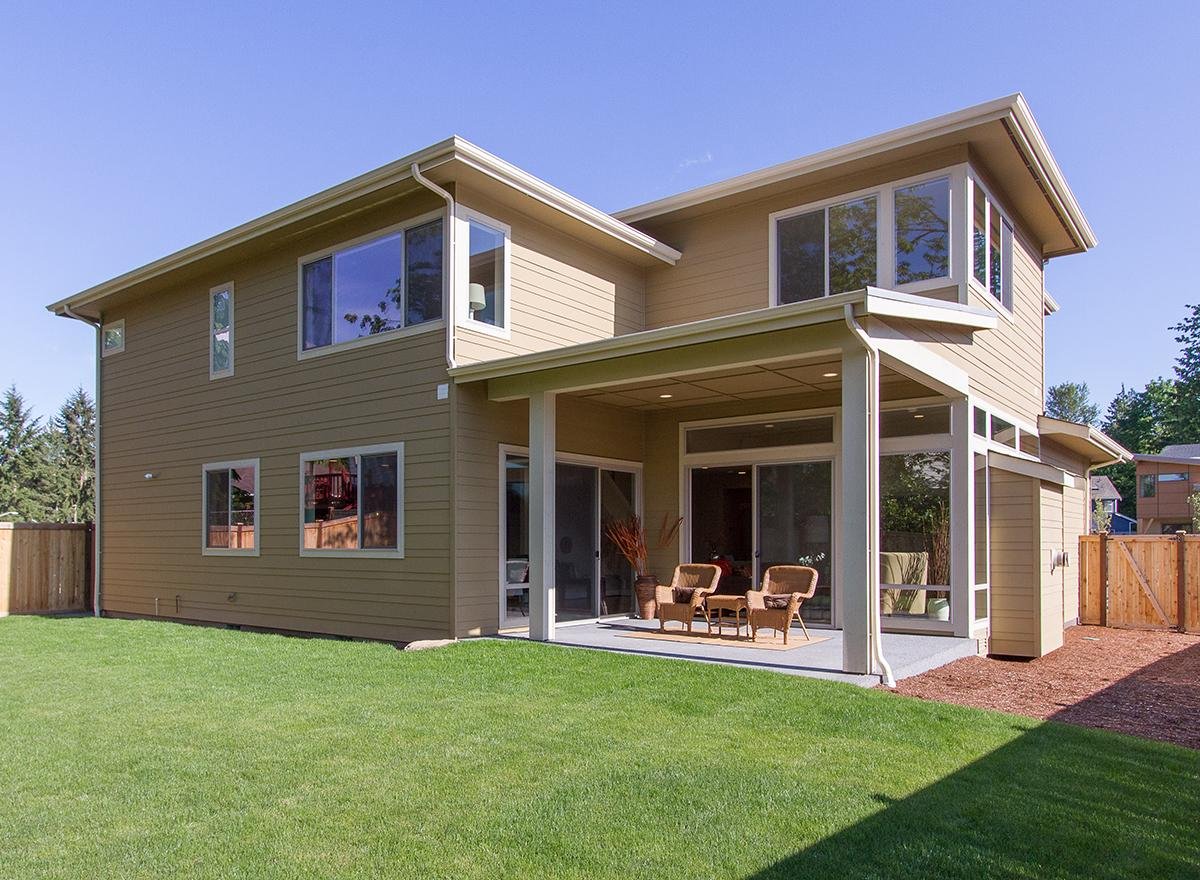

Rear Photo

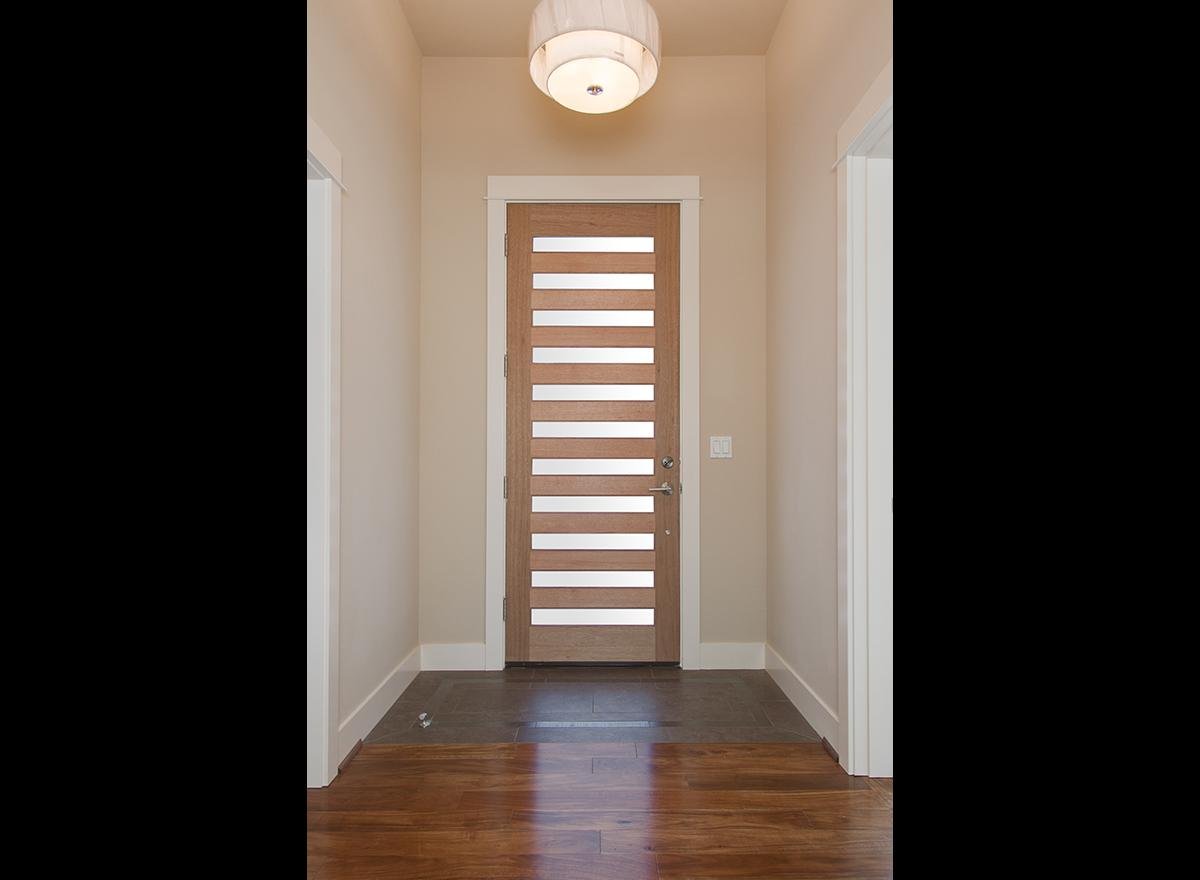

Foyer

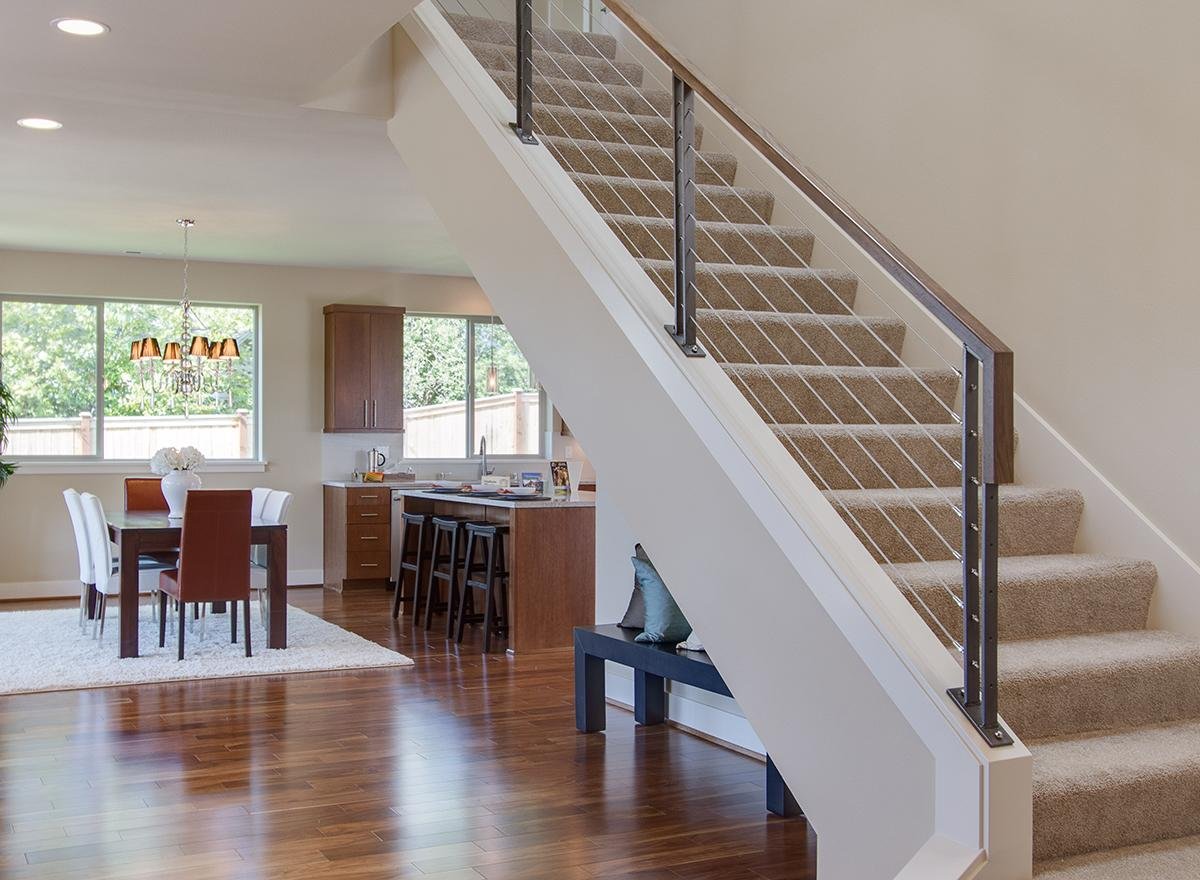

Foyer

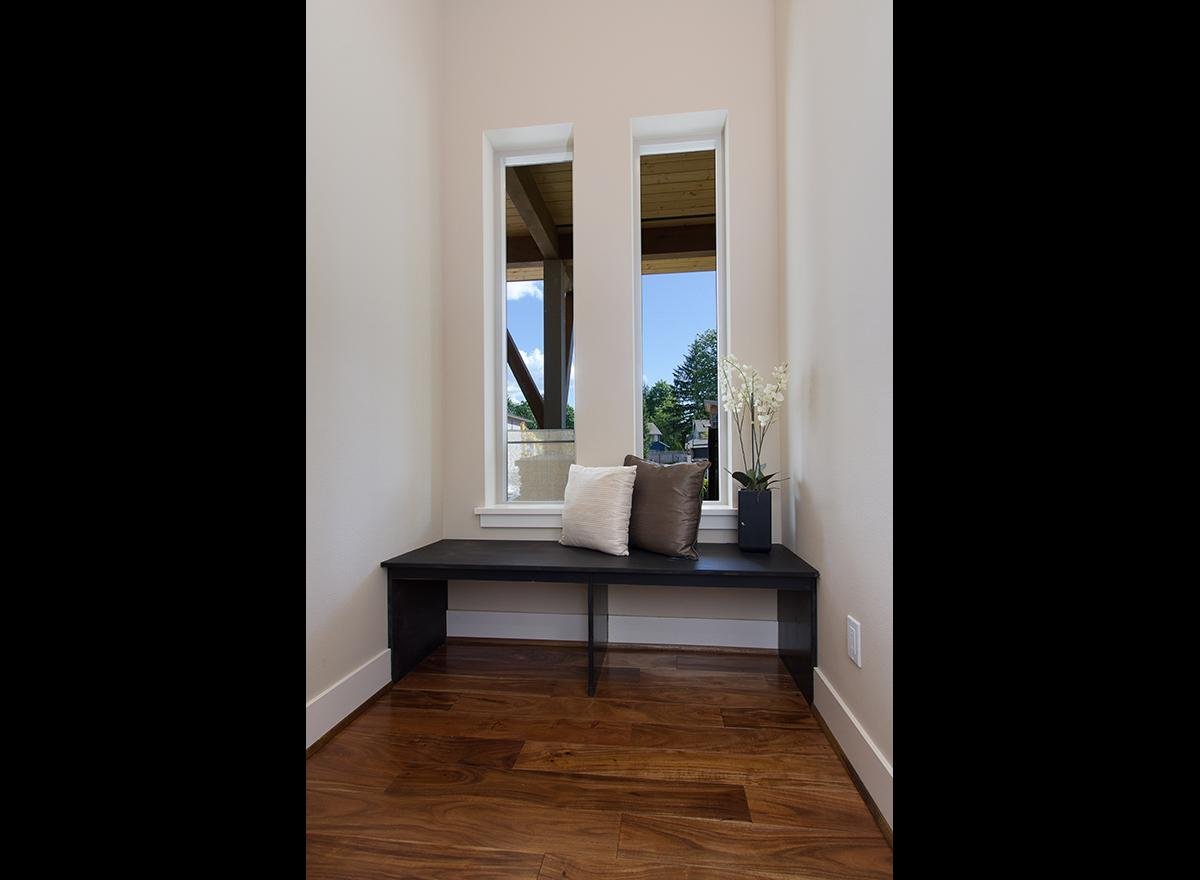

Family Foyer
Den

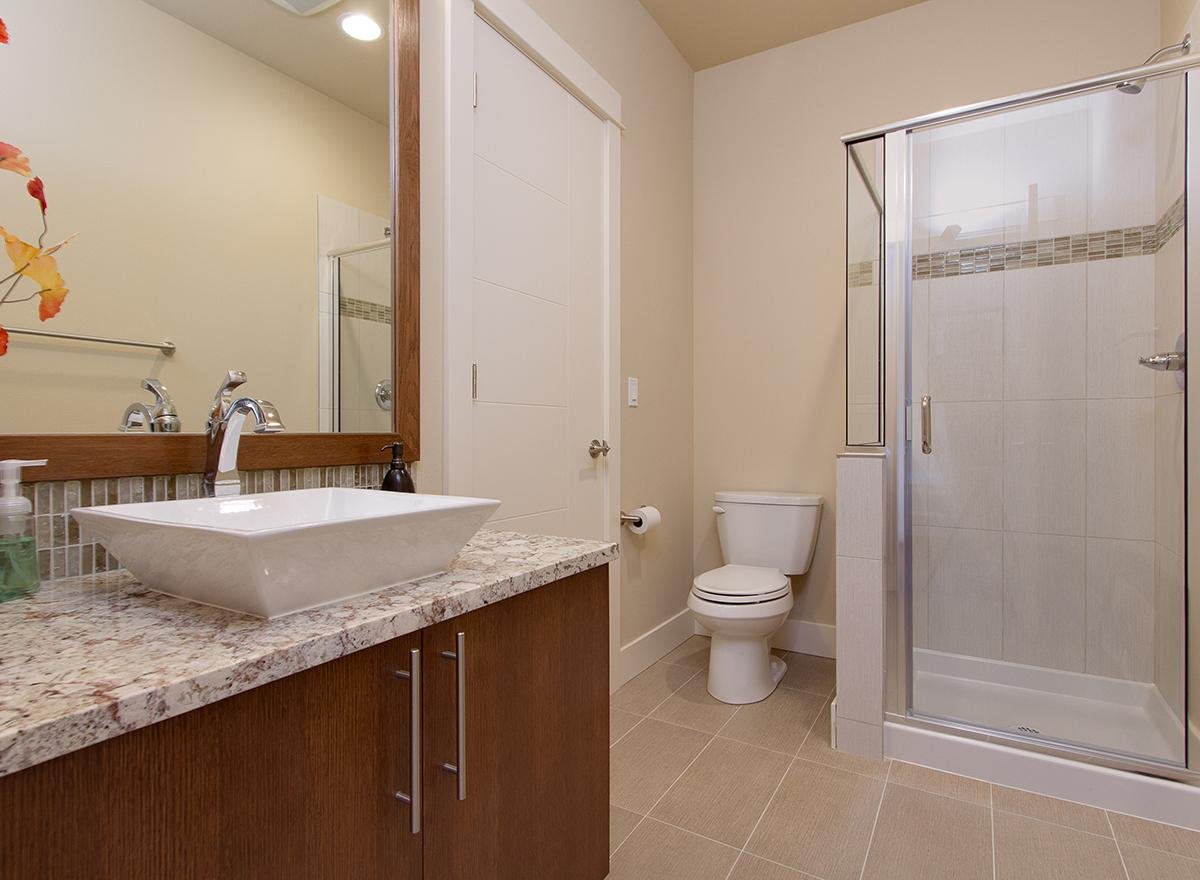

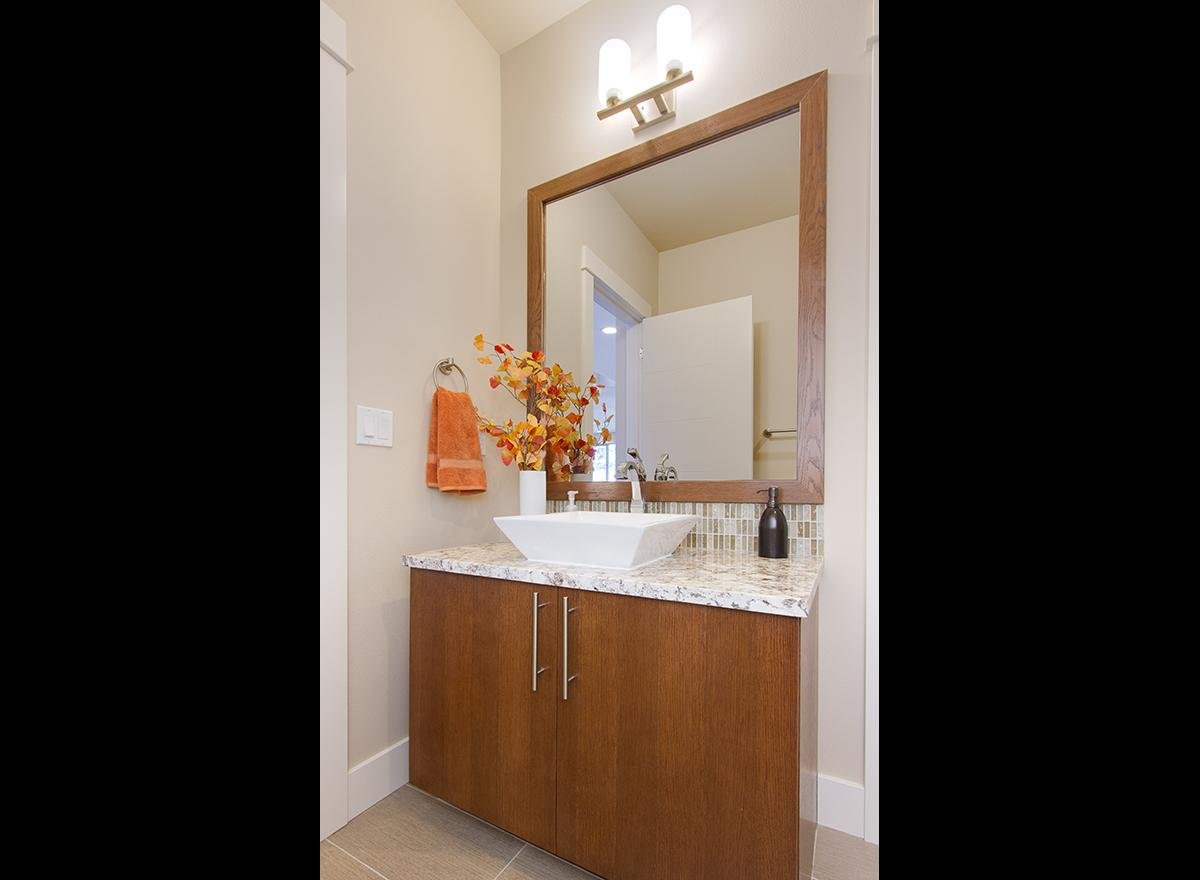

Bath 1
Bath 1
Great Room
Great Room
Dining
Outdoor Living
Dining-Kitchen

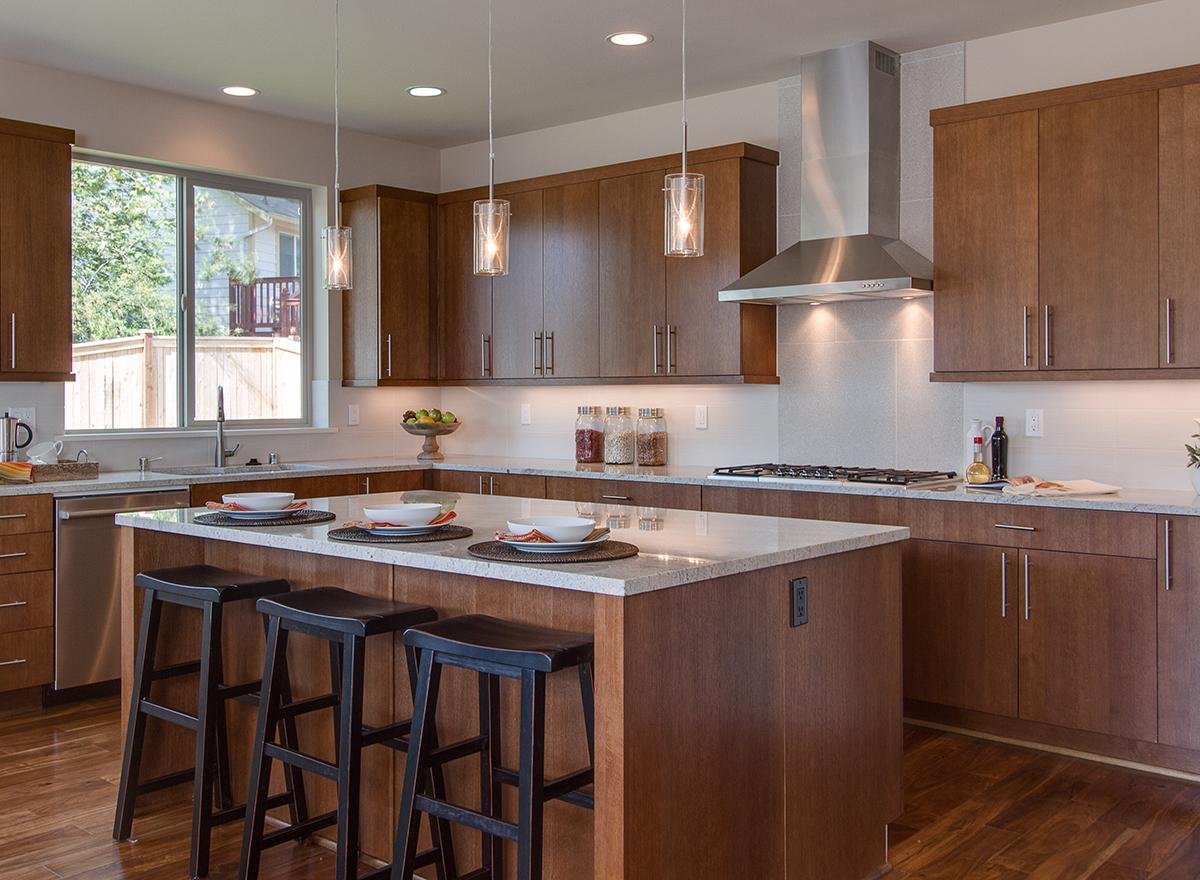

Kitchen

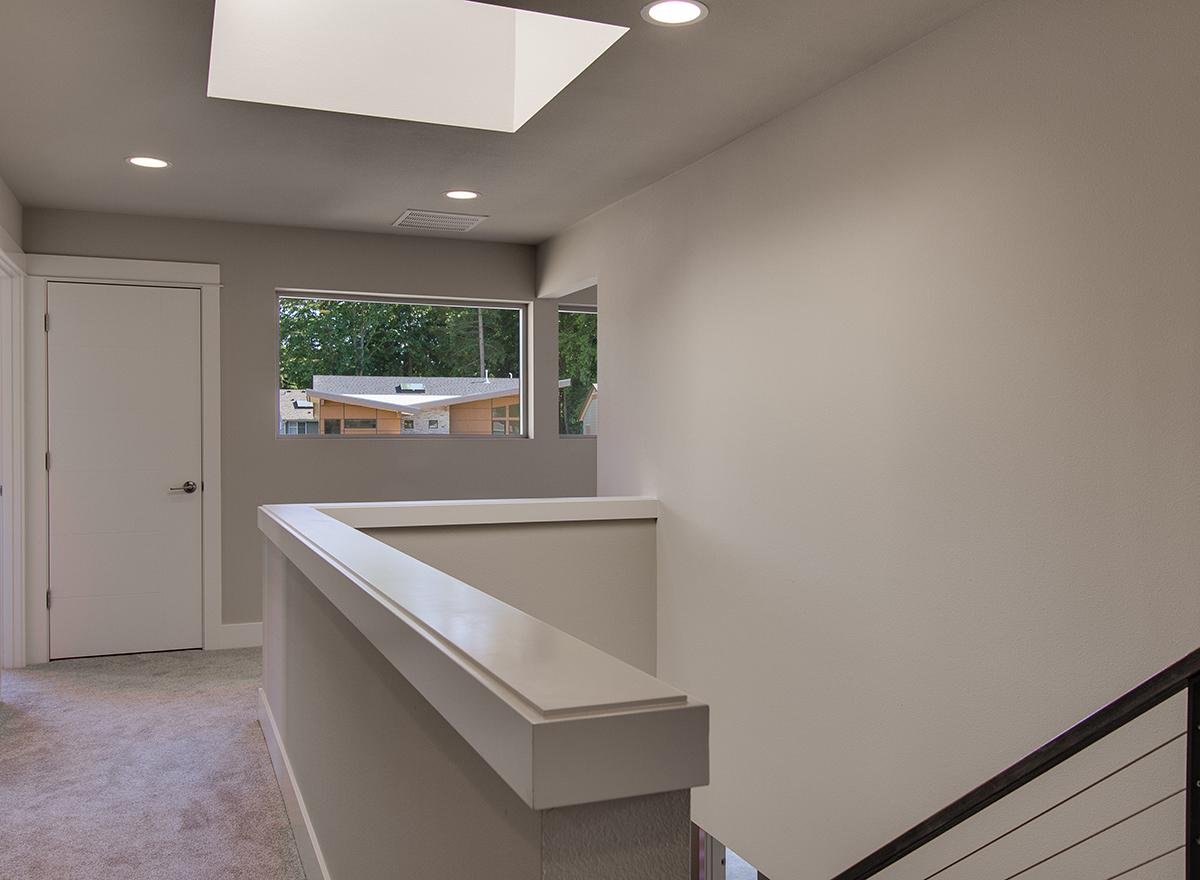

Upper Hall

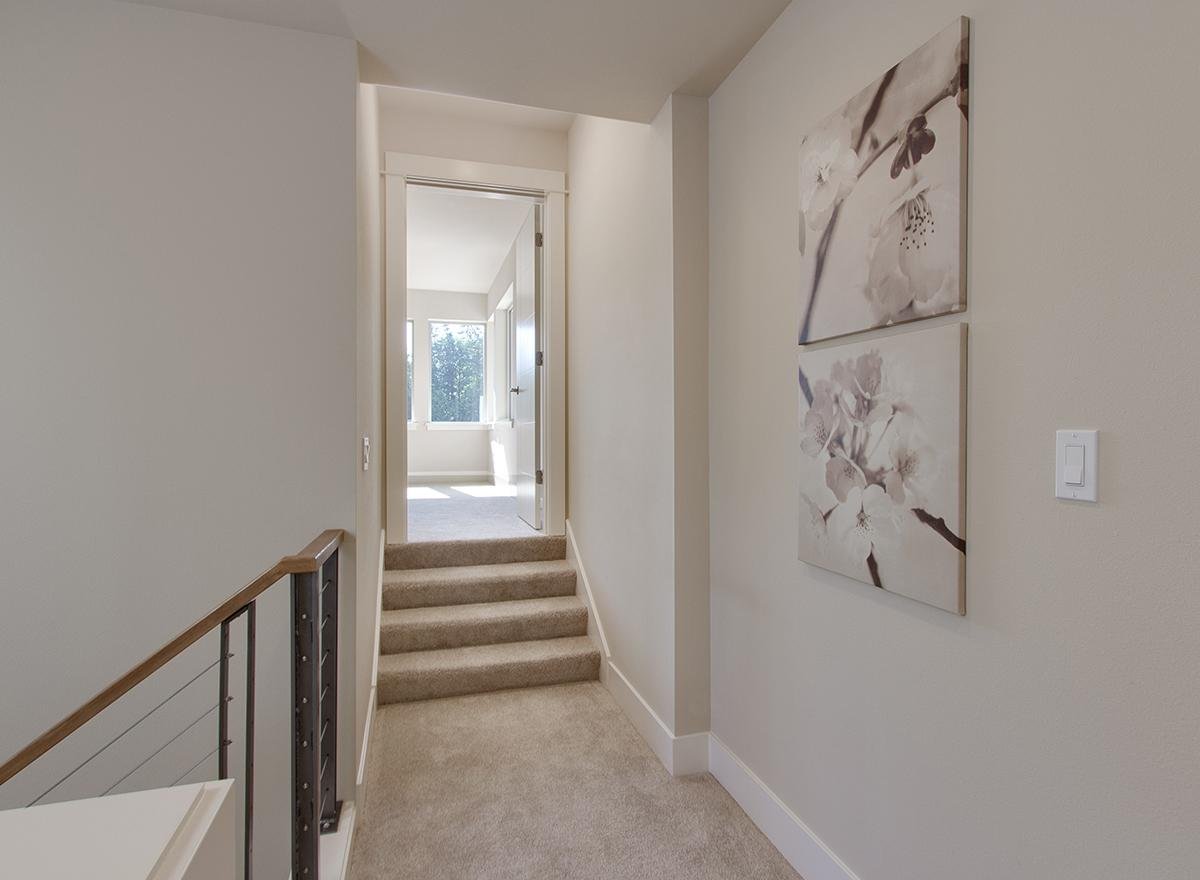

Upper Hall
Master Bedroom

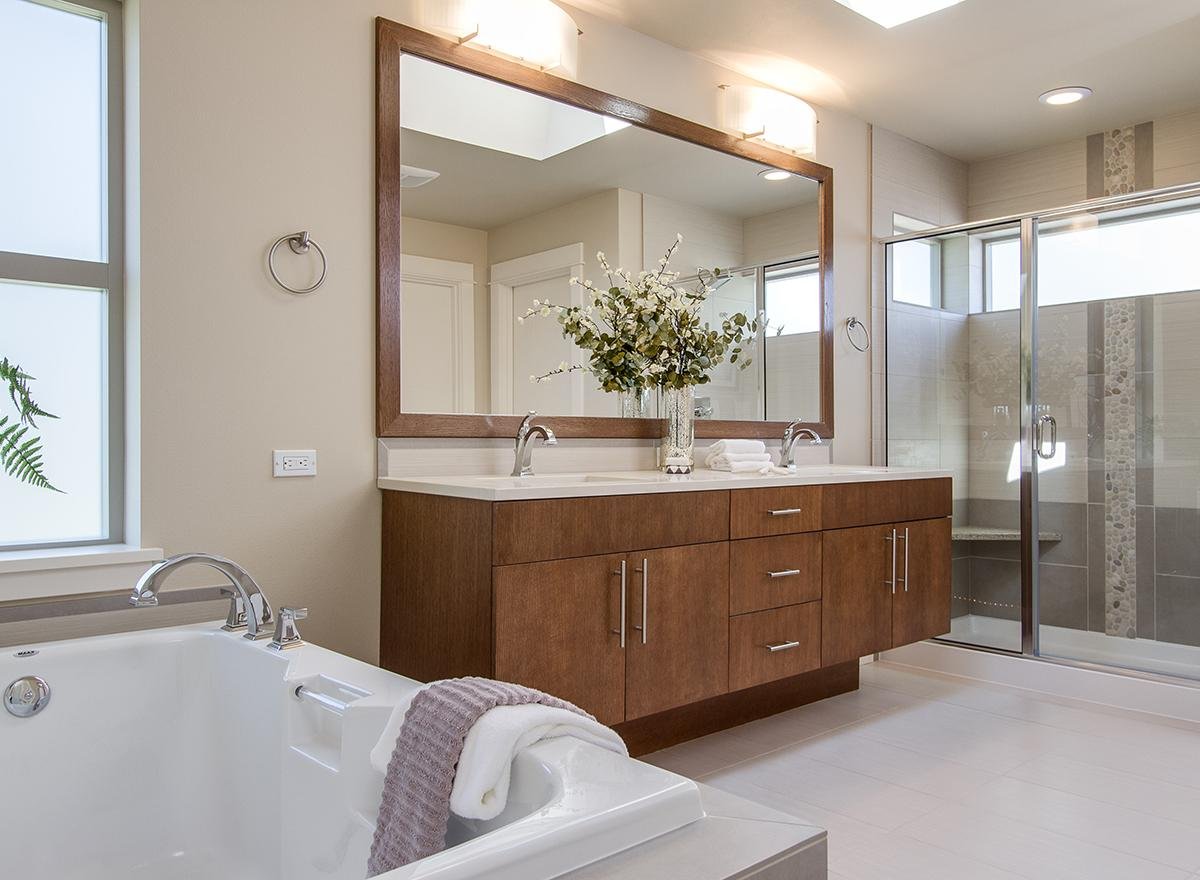

Master Bath
Master Bath
Master Bath

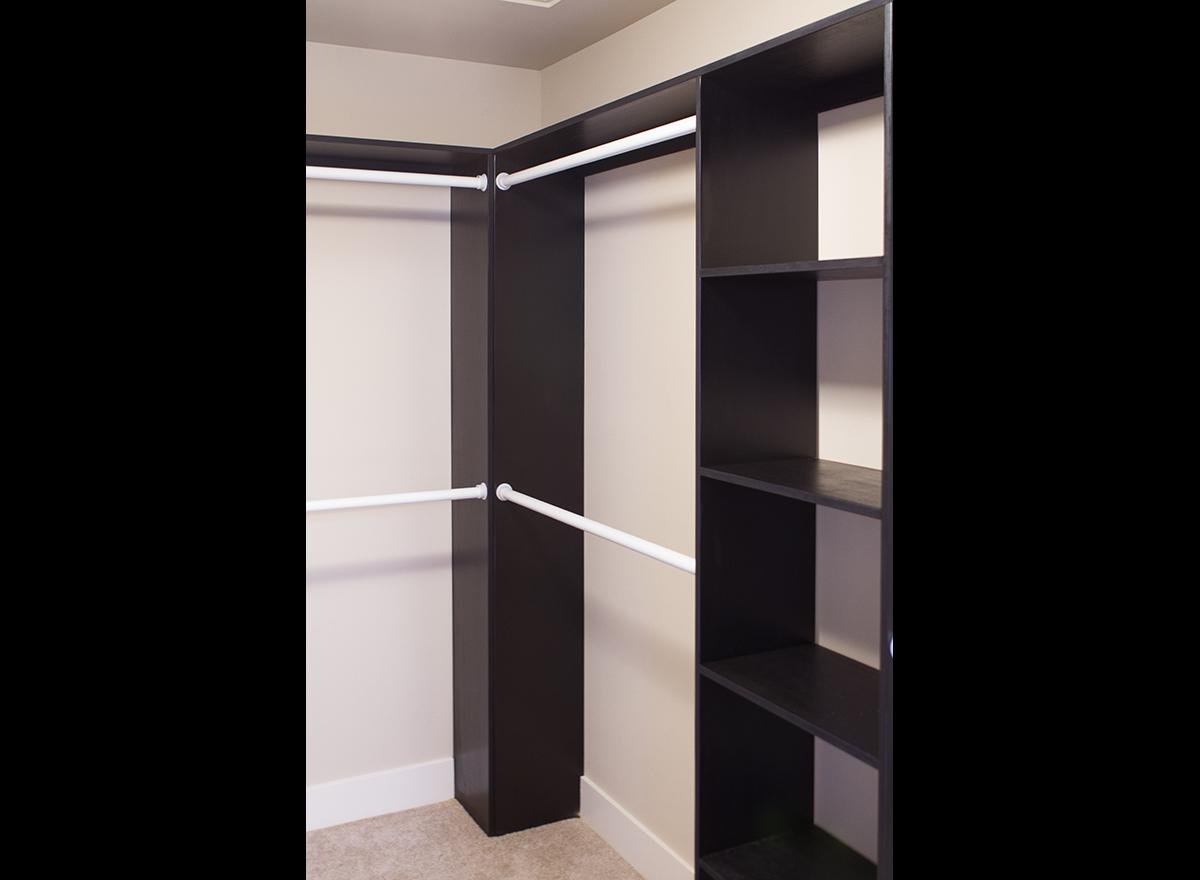

WIC

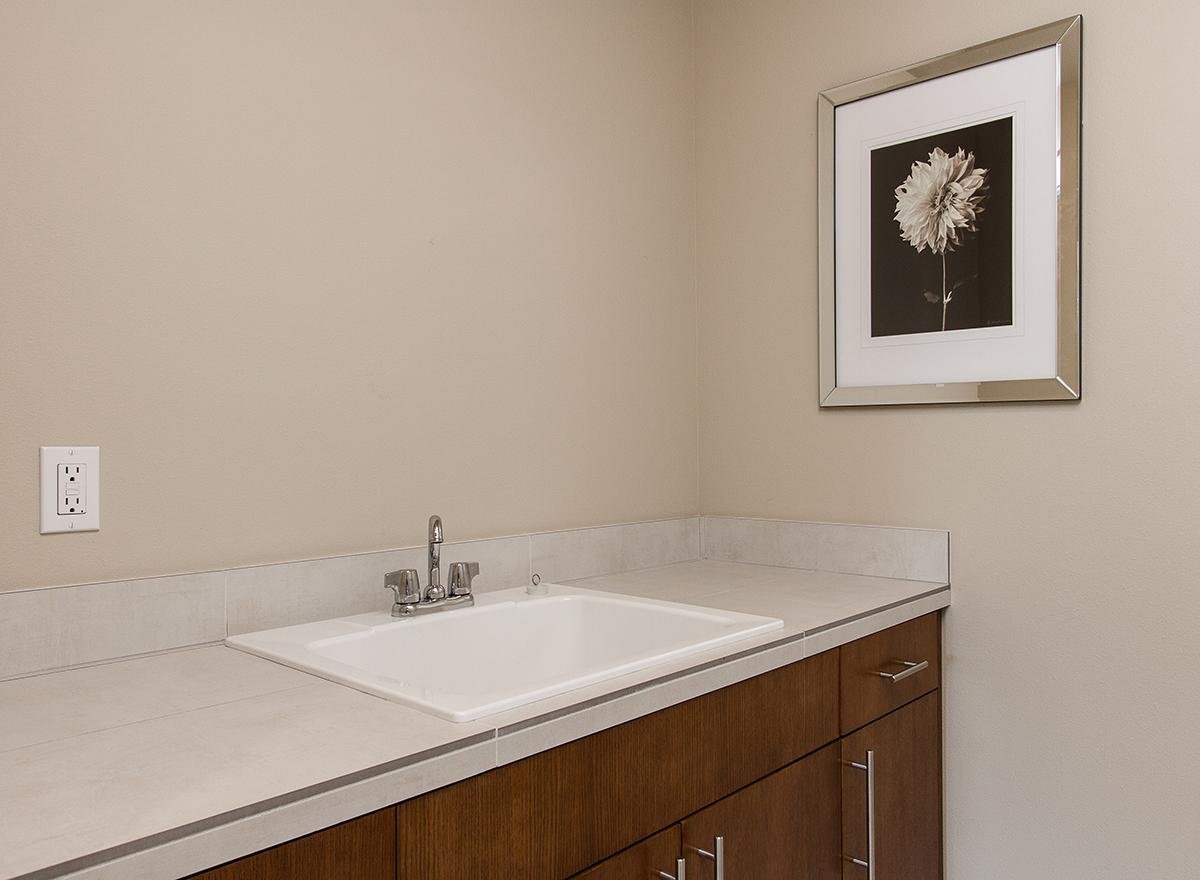

Laundry
Bedroom 2
Bedroom 3

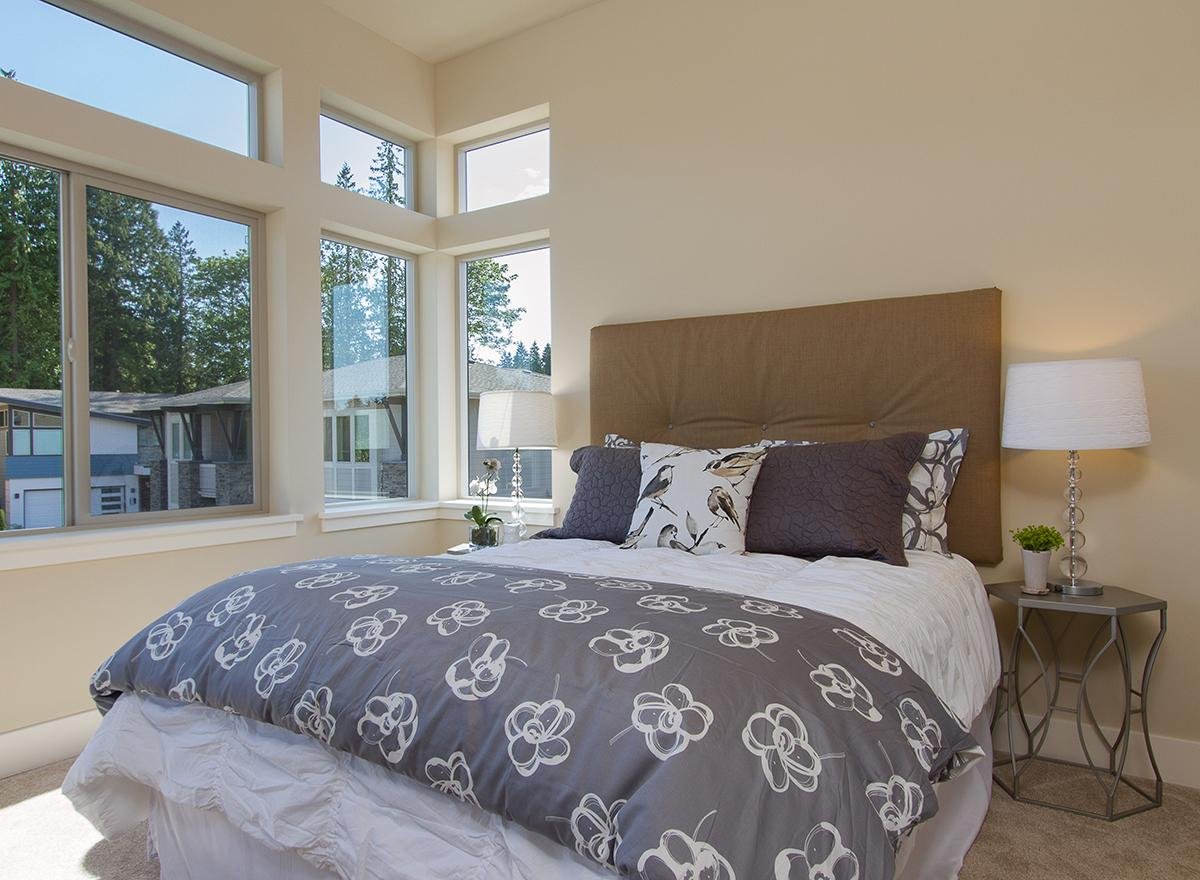

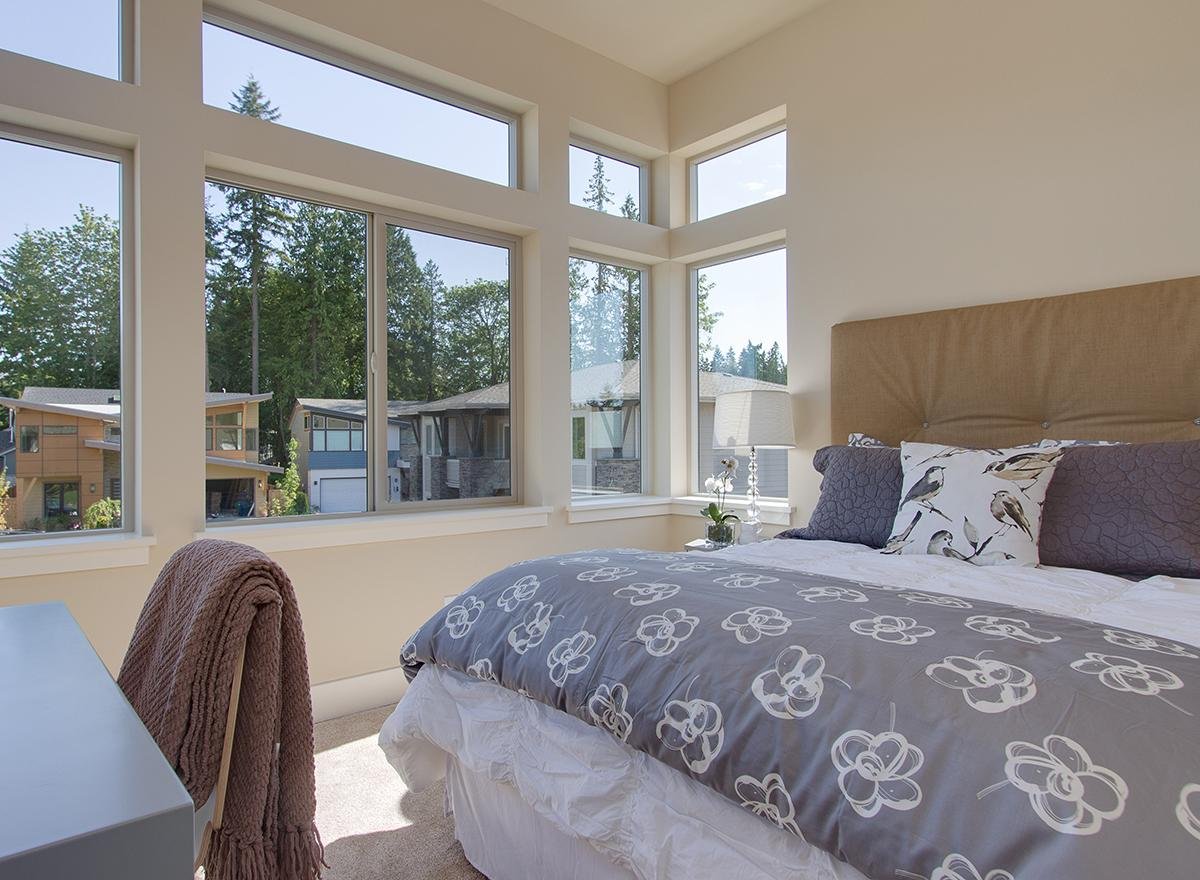

Bedroom 4
Bedroom 4

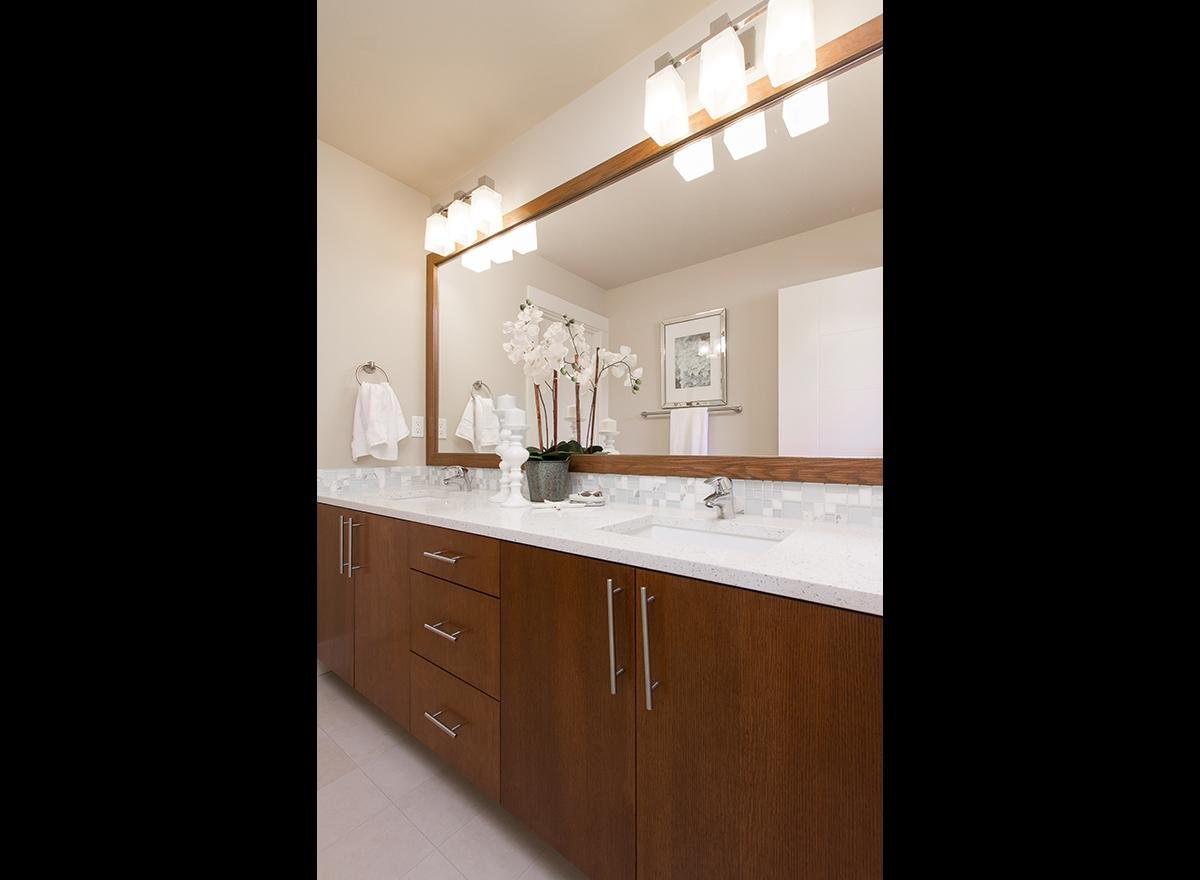

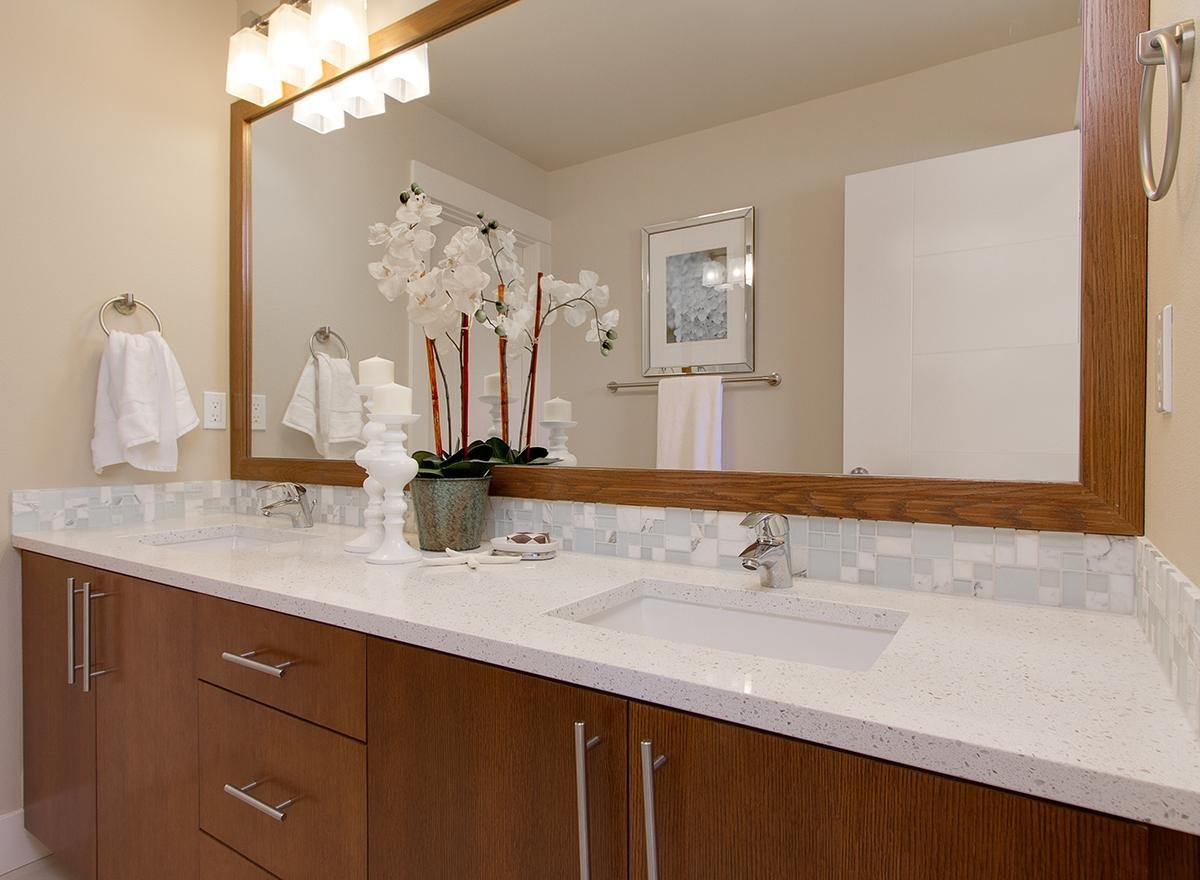

Bath 3
Bath 3

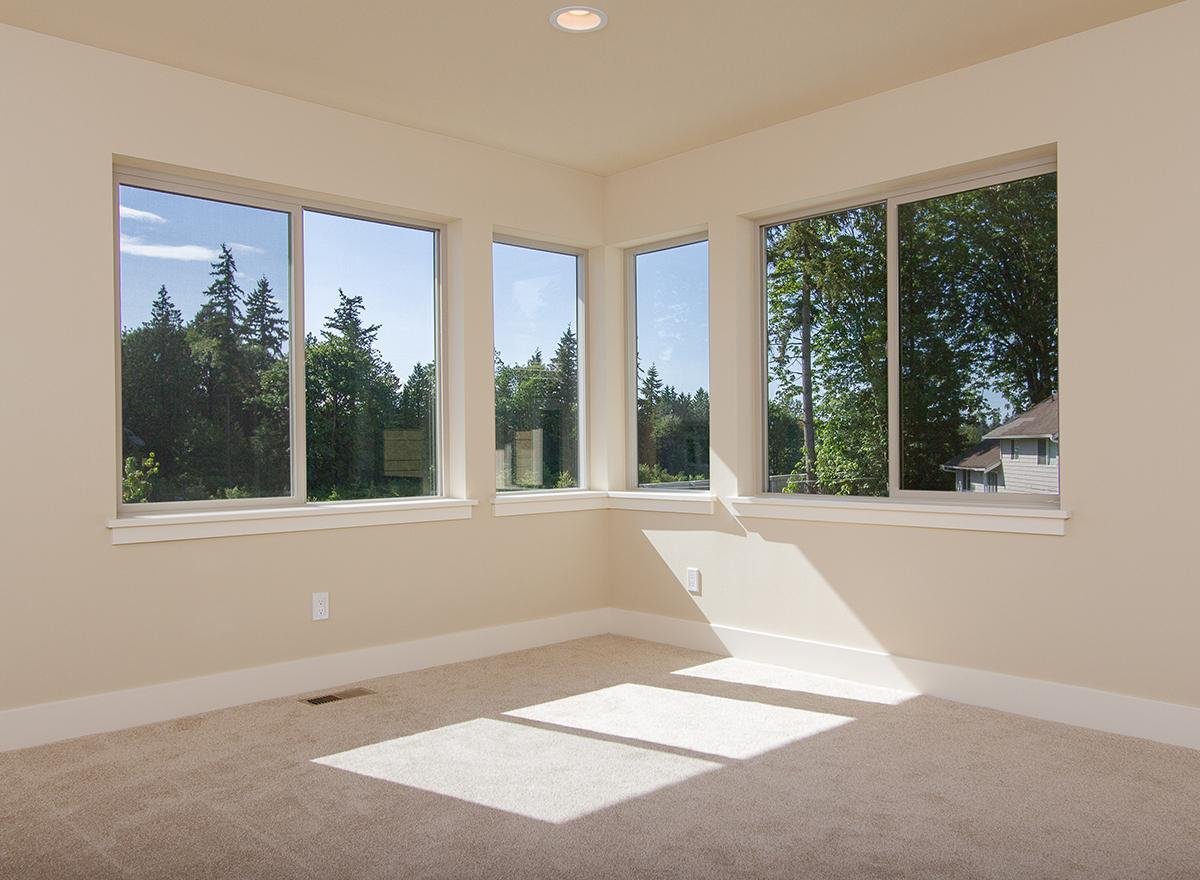

Bonus
Front Rendering

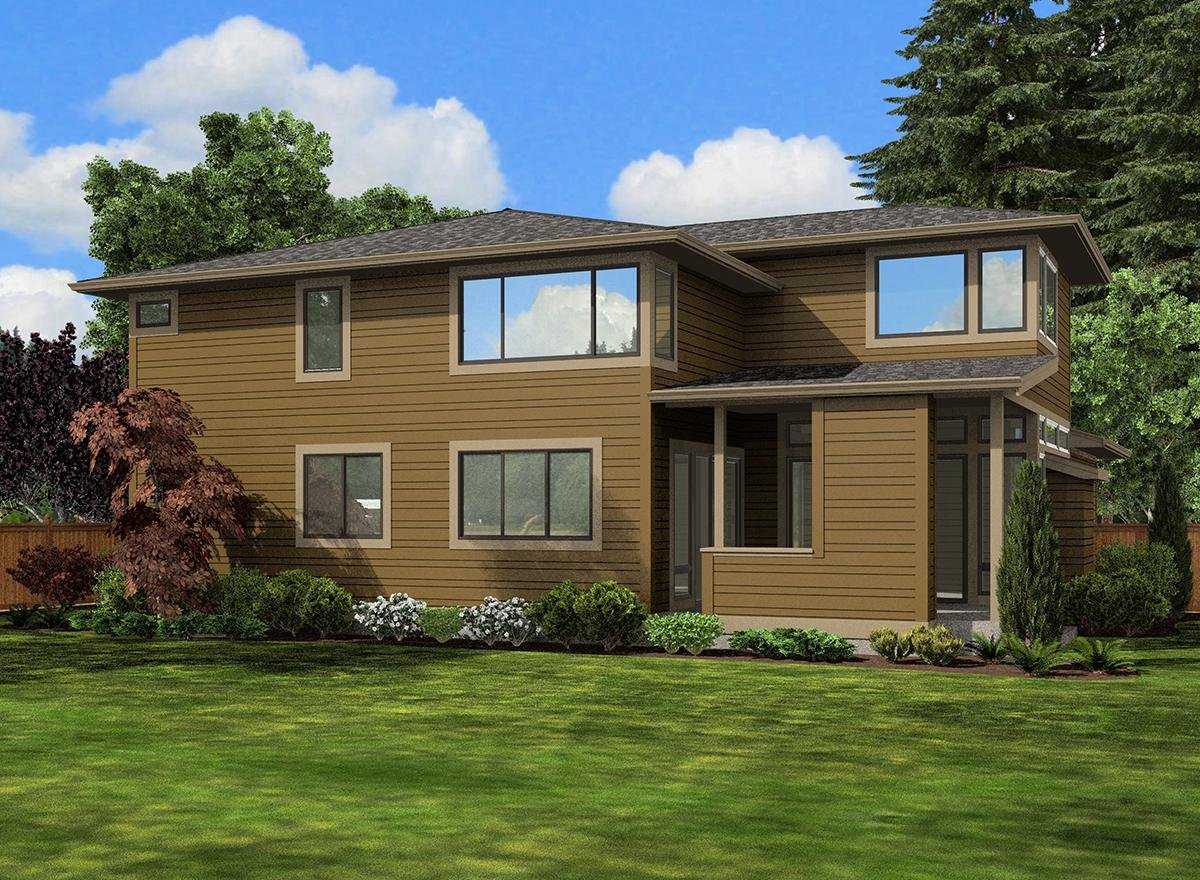

Rear Rendering

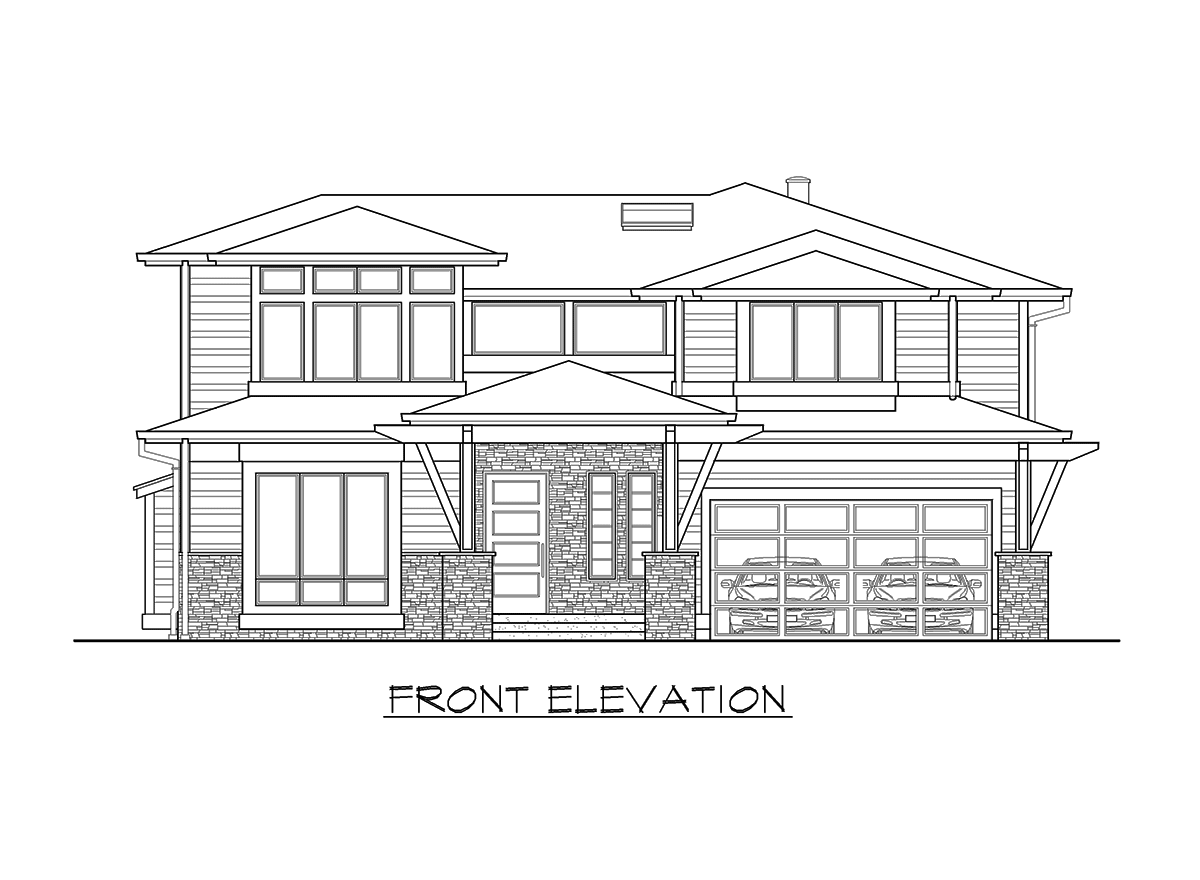

Front Elevation
Left Elevation

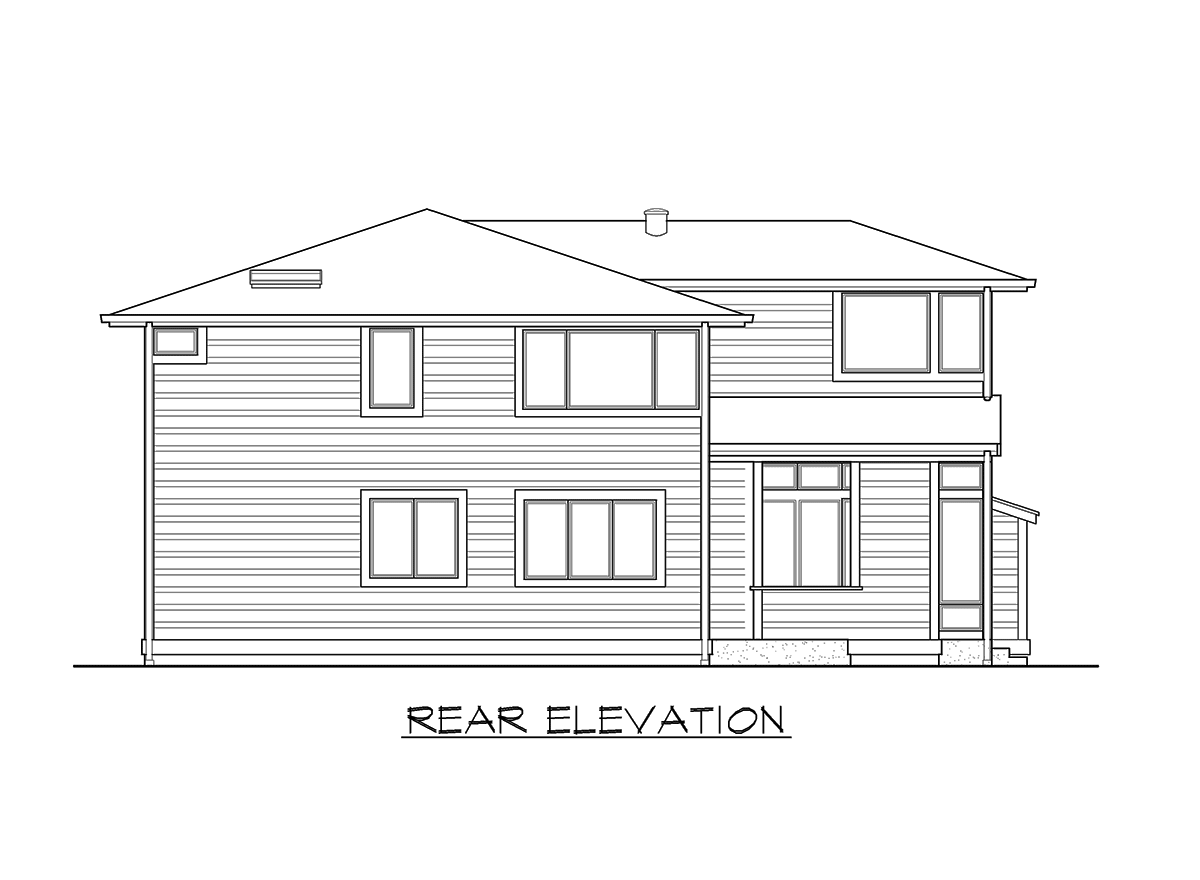

Rear Elevation

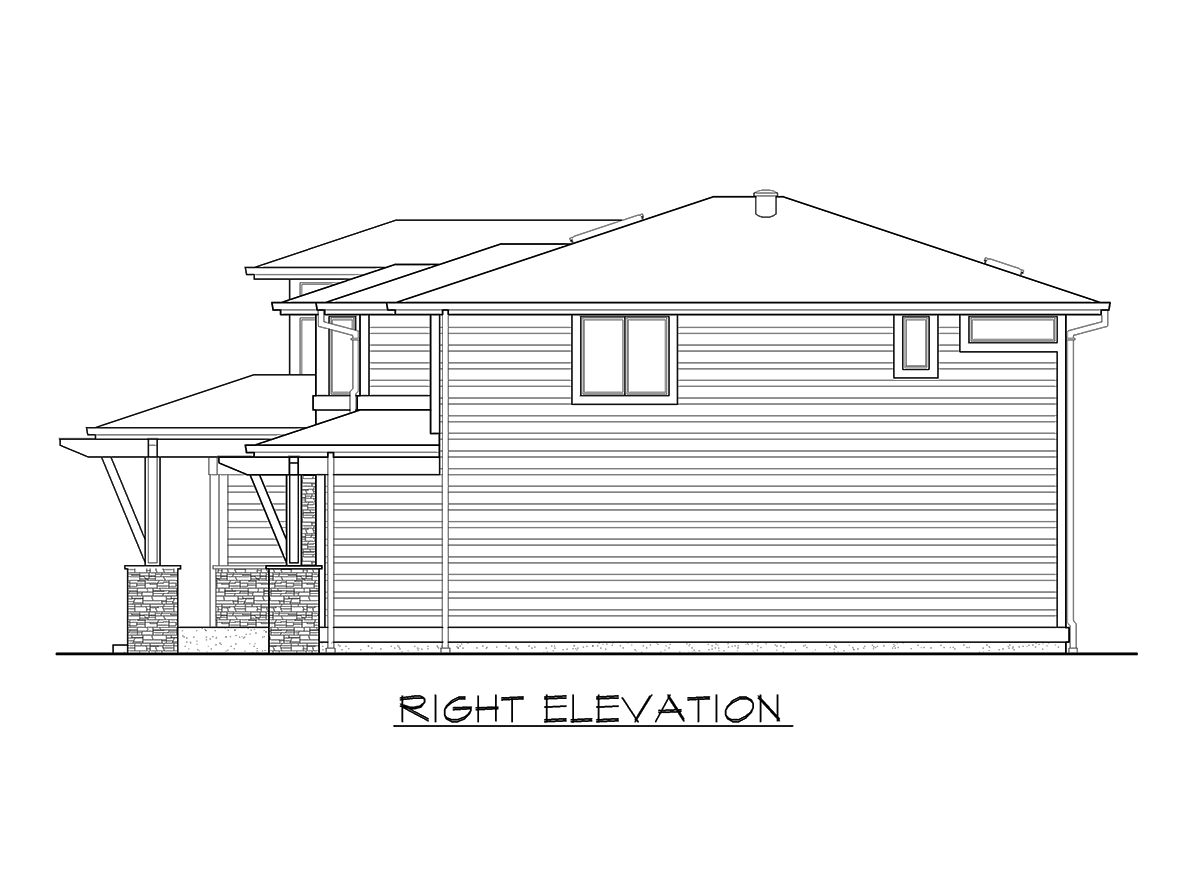

Right Elevation
Front Photo
Outdoor Living
Stairs
Hall
Foyer
Den
Great Room
Great Room
Great Room
Dining
Dining
Dining & Kitchen
Kitchen
Kitchen
Kitchen
Kitchen
Kitchen
Kitchen
Kitchen
Kitchen
Master Bedroom
Master Bedroom
Master Bath
Master Bath
Master Bath
Master Bath
Bonus
Bedroom 2
Bedroom 3
Bath 3
Bedroom 4
Front Photo
Front Photo
Rear Photo
Foyer
Foyer
Family Foyer
Den
Bath 1
Bath 1
Great Room
Great Room
Dining
Outdoor Living
Dining-Kitchen
Kitchen
Upper Hall
Upper Hall
Master Bedroom
Master Bath
Master Bath
Master Bath
WIC
Laundry
Bedroom 2
Bedroom 3
Bedroom 4
Bedroom 4
Bath 3
Bath 3
Bonus
Front Rendering
Rear Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

CASTELLA

M2880A3FT-0
  • Total Area:2875 Sq. Ft.
  • Garage Area:650 Sq Ft
  • Garage Size:3
  • Stories:2
  • Bedrooms:4
  • Full Baths:3
  • Width:48'-0"
  • Depth:53'-0"
  • Height:24'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan
M2880A3FT-0 Castella Main Floor
Main Floor

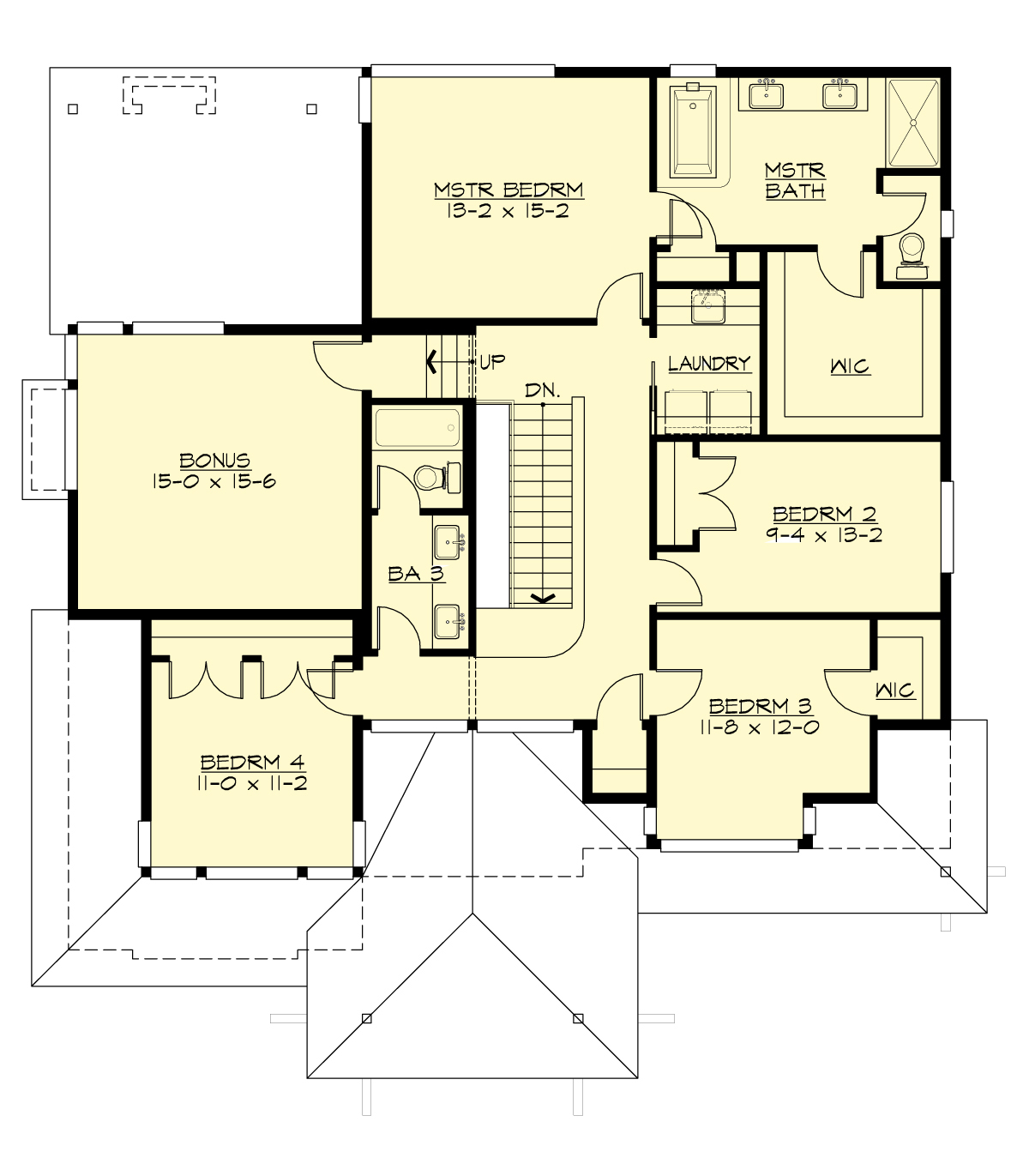

M2880A3FT-0 Castella Upper Floor
Upper Floor
PLAN DETAILS FOR THE CASTELLA - PLAN M2880A3FT-0
Area Summary
  • Total Area:2875 Sq. Ft.
  • Main Floor:1272 Sq. Ft.
  • Upper Floor:1603 Sq. Ft.
  • Garage Floor:650 Sq. Ft.
General Information
  • Stories:2
  • Width:48'-0"
  • Depth:53'-0"
  • Height:24'-6"
Architectural Style
  • Contemporary
  • Modern
  • Prarie
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
Garage
  • Garage Size:3
  • Garage Door Location:Front
  • Garage Type: Tandem
Roof Pitches
  • Primary:4:12
Wall Heights
  • Main:9'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Best Selling Plans
  • Bonus Space @ & Upper Floor
  • Den/Office
  • Rear Porch
  • Great Room
  • Laundry Room @ & Upper Floor
  • Master Bedroom @ Upper Floor Rear
  • Contemporary Home Plans
  • Modern Home Plans
  • Prairie Home Plans
  • Narrow Lot House Plans
  • View Lot (Rear) Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
